| 产品规格 | AI 边缘算力盒 TS-NV-P200 (16GB/8GB) | AI 边缘算力盒子 TS-NV-P200X (8GB/4GB) | AI 边缘算力盒子 TS-NV-P200S (16GB/8GB) | |
| 操作系统 | SoC | NVIDIA Xavier NX | NVIDIA ORIN NANO | NVIDIA ORIN NX |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU | 6核Arm®Cortex®-A78AE v8.2 64CPU；1.5GHZ | 16GB：8核ARM Cortex A78AE V8.2 64 8GB：6核ARM Cortex A78AE V8.2 64 | |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores | 8GB:1024*CUDA核⼼和32个Tensor Core Ampere架构 4GB:512*CUDA核⼼和16个Tensor Core Ampere架构 | 1024*CUDA 核心和 32 个 Tensor Core Ampere 架构 | |
| 内存 | 8GB or 16GB LPDDR4X 59.7GB/S | 8GB 128 位 LPDDR5 68GB/s；4GB 64-bit LPDDR5 34GB/s | 16/8GB 128 位 LPDDR5 102.4GB/s | |
| eMMC | 16GB eMMC 5.1 | 支持外部 NVME | 支持外部 NVME | |
| OS | Ubuntu 18.04; CUDA 10.2; Jetpack 4.5.1----Jetpack 4.6.3; Or Ubuntu 20.04, jetpack5.1.1 | |||
| Computing Power | Computing Power | INT8：2.1Tops；FP16 | 8GB：40TOPS(INT8); 4GB:20TOPS(INT8) | 16GB：100TOPS(INT8); 8GB：70TOPS(INT8) |
| 视频 | 编码 | 20*1080P30(H.264)|4*4K P30 | 4*1080P30 | 1*4k60(H.265)|14*1080P30(H.265) |
| 解码 | 22*1080P30(H.264)|12*4K P30 | 1*4K60(H.265)/2*4K30(H.265)/11*1080P30(H.265) | 24*1080p30(H.265)|6*4k 30(H.265) | |

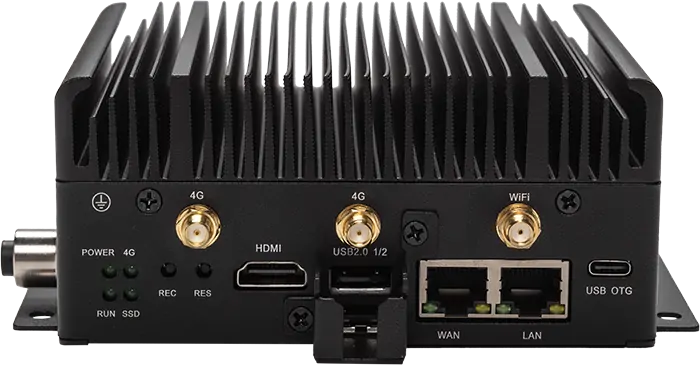

| HDMI | 1 x HDMI 2.0 | |||
| LAN | RJ45 | 4*RJ45 100M/1000M | ||
| USB | USB | 2USB3.0;2USB2.0; 1*USB TypeC debug | ||

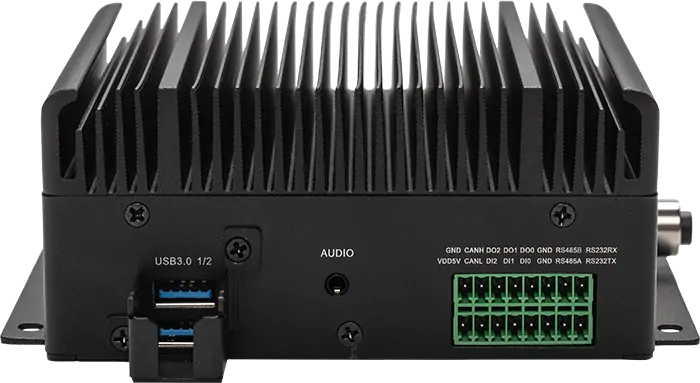

| I/O (凤凰端子 Plug) | RS485 | 1*RS485-A, RS485-B, GND | ||
| DI/DO | 6-bit (3IN-3OUT) GPIO, 2*GND, connector with 凤凰端子 | |||
| RS232 | 1*RS232 RX, RS232TX, GND | |||
| CAN | 1*CAN with 凤凰端子 | |||
| Expand | Expand | M.2 nvme SSD(Upper 2TB);1* NANO SIM,1Micro SD;14G/5G,1北斗 + GPS，1Wi-Fi | ||
| Audio | Audio | In/Out 3.5mm Earphone holder | ||
| Key | Key | Recovery1;Reset1 | ||

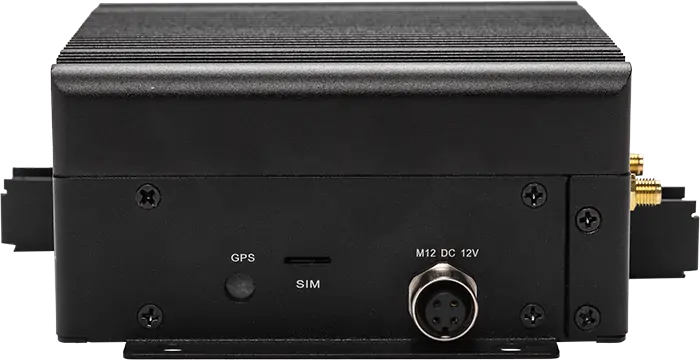

| Power | Conn | aviation plug, 4Pin; DC 12V 5A | ||
| 指示器 | Power/run | Power/run Power indicator (green power on,NO light power off);System operation indication | ||
| 4G/HDD | 4G signal indication (green, resident network on, search network flashing, offline off) | |||
| 尺寸 | 12511855 (无天线无USB固定支架无电源头，加电源头长度145mm，加USB固定支架宽度148mm)，重量1kg | |||
| 环境 | Operational Temperature:-20℃~65℃;Storage Temperature:-40℃~85℃ | |||
