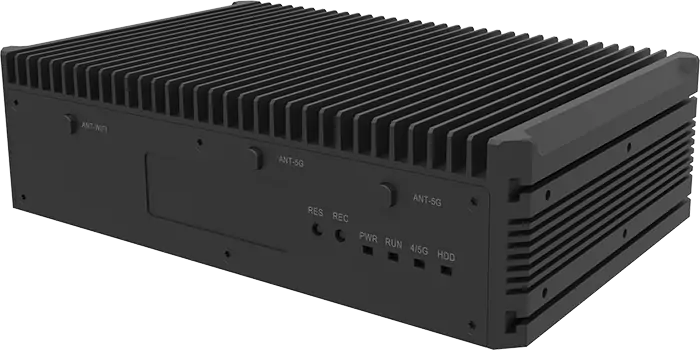

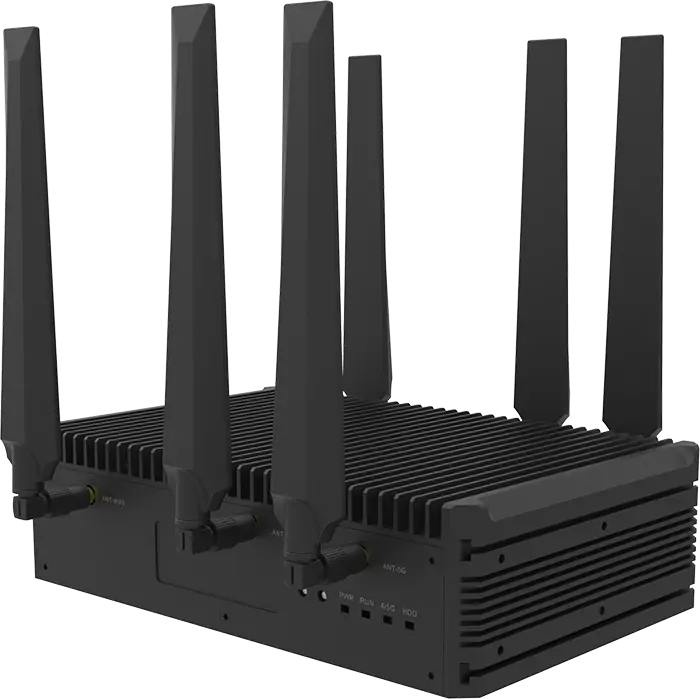

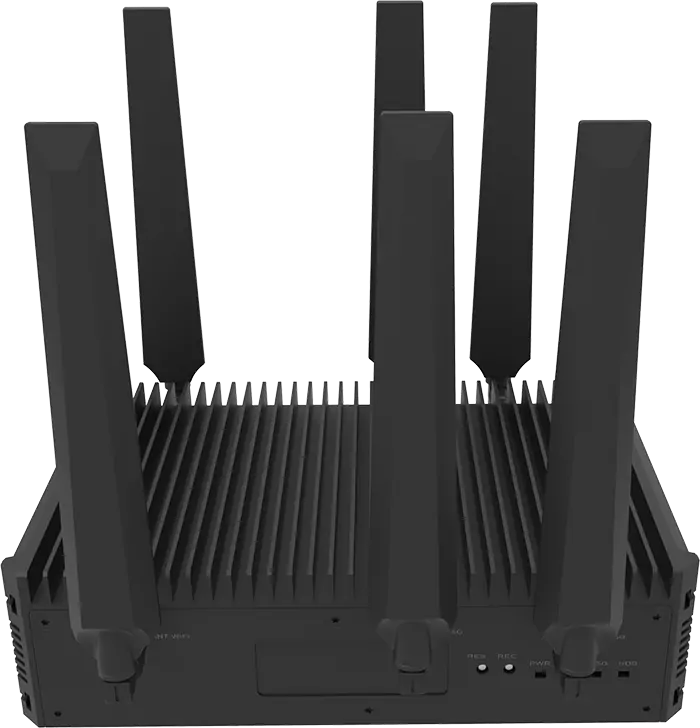

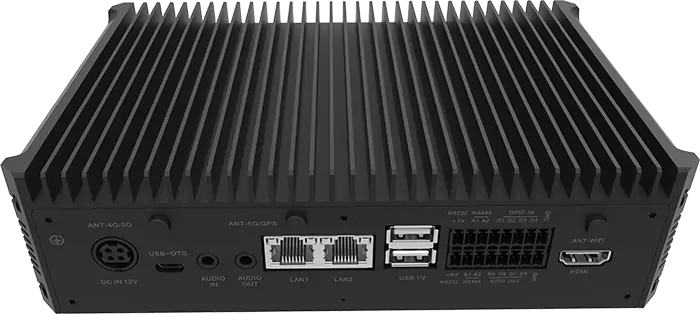

| 产品规格 | AI 边缘算力盒子 TS-NV-P100(16GB/8GB) | AI 边缘算力盒子 TS-NV-P100M | AI 边缘算力盒子 TS-NV-P100L | AI 边缘算力盒子 TS-NV-P100X（8GB/4GB） | AI 边缘算力盒子 TS-NV-P101S（16GB/8GB） | |
| 操作系统 | SoC | NVIDIA Xavier NX | NVIDIA TX2 NX | NVIDIA NANO | NVIDIA ORIN NANO | NVIDIA ORIN NX |
| CPU | 6 Core NVIDIA Carmel ARM®v8.2 64-bit CPU | dual-Core Denver2 64bit CPU and quad-Core arm Cortex A57 | 4 Core ARM A57 | 6 Core Arm®Cortex®-A78AE v8.2 64CPU;1.5GHZ | 16GB：8核ARM Cortex A78AE V8.2 64 8GB：6核ARM Cortex A78AE V8.2 64 | |
| GPU | 384-core NVIDIA Volta™ GPU with 48Tensor Cores | NVIDIA Pascal 256 CUDA CUDA Cores | 128 Core Maxwell | 8GB：1024*CUDA核心和32个 Tensor Core Ampere架构 4GB：512*CUDA核心和16个 Tensor Core Ampere架构 | 1024* CUDA核心和32个 Tensor Core Ampere架构 | |
| 内存 | 8GB or 16GB LPDDR4x 59.7GB/S | 4GB 128bit LPDDR4x | 4GB 64-bit LPDDR4 | 8GB 128位LPDDR5 68GB/s 4GB 64-bit LPDDR5 34GB/S | 16/8GB 128位LPDDR5 102.4GB/s | |
| eMMC | 16GB eMMC 5.1 | 16GB eMMC 5.1 | 16GB eMMC 5.1 | 支持外部NVME | 支持外部NVME | |
| OS | Ubuntu 18.04；CUDA 10.2；Jetpack 4.5.1 Jetpack4.6.1 | Ubuntu 20.04，jetpack5.1 | ||||
| Computing Power | Computing Power | INT8：21Tops；FP16 | FP16：1.33TFLOPS | FP16：0.5TFLOPS | 8GB：40TOPS(INT8) 4GB：20TOPS(INT8) | 16GB：100TOPS(INT8) 8GB：70TOPS(INT8) |
| 视 频 | 编码 | 20*1080P30(H.264) 4*4K P30 | 14*1080P30 (H.264) 3*4K P30 | 4*1080P30(H.264) 1*4K P30 | 4*1080P30 | 4*1080P30 |
| 解码 | 22*1080P30(H.264) 12*4K P30 | 14*1080P30(H.264) 4*4K P30 | 4*1080P30(H.264) 2*4K P30 | 1*4K60(H.265)/2*4K30(H265) 11*1080P30(H265) | 1*4K60(H.265)/2*4K30(H265) 11*1080P30(H265) | |

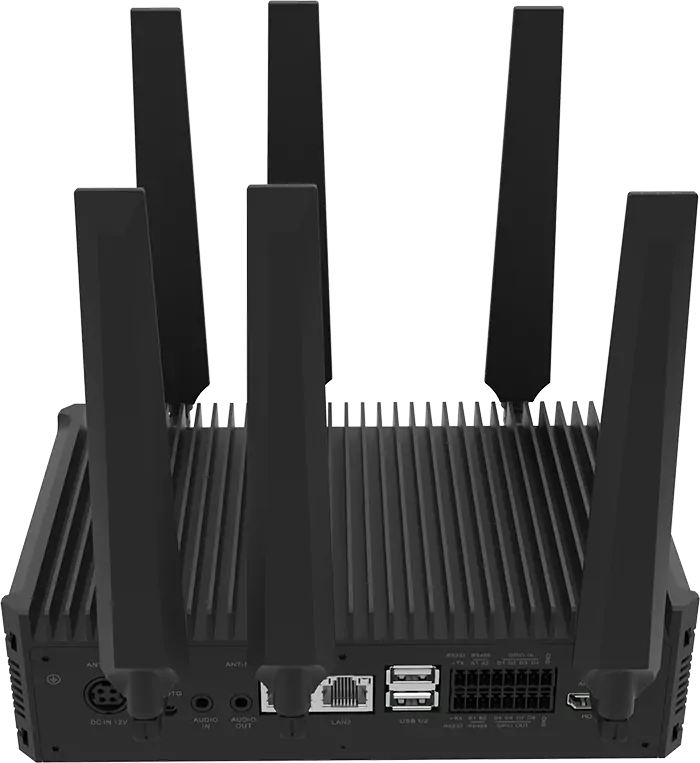

| HDMI | 1 x HDMI 2.0 | |||||
| LAN | RJ45 | 2*100M/1000M | ||||
| USB | USB | 2*USB 3.0；1*USB 2.0 debug | ||||
| I/O (凤凰端子 Plug) | RS485 | 2* D+ and D- connector with DI/DO | ||||
| DI/DO | 6-bit(3IN-3OUT)GPIO，2*GND，connector with RS485 | |||||
| RS232 | 1*，RXD and TXD，connector with DI/DO | |||||
| CAN | 1*CAN | |||||
| Expand | Expand | M.2 nvme SSD（Upper 2TB）1* NANO SIM,1* Micro SD；1* 4G/5G，1*GPS，1*Wi-Fi | ||||
| Audio | Audio | In/Out 3.5mm Earphone holder | ||||
| Key | Key | Recovery*1；Reset*1 | ||||
| Power | Conn | aviation plug，4Pin DC 9 ~ 24V (Typical:DC12V 5A) | ||||

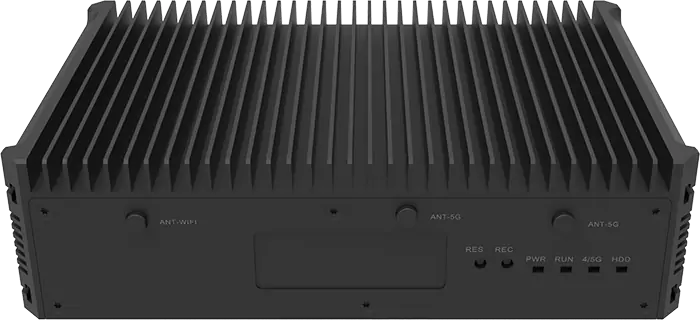

| 指示器 | Power/run | Power indicator (blue power on,NO light power off);System operation indication | ||||
| 4G/HDD | 4G signal indication (blue,resident network on,search network flashing,offline off) | |||||
| 尺寸 | P100：195.6(L)*125.0(W)*53.5(H)mm；2kg；P101：242.56(L)*125.0(W)*72.5(H)mm（不线）2.5kg | |||||
| 环境 | Operational Temperature：-20℃-65℃；Storage Temperature：-40℃-80℃ | |||||
