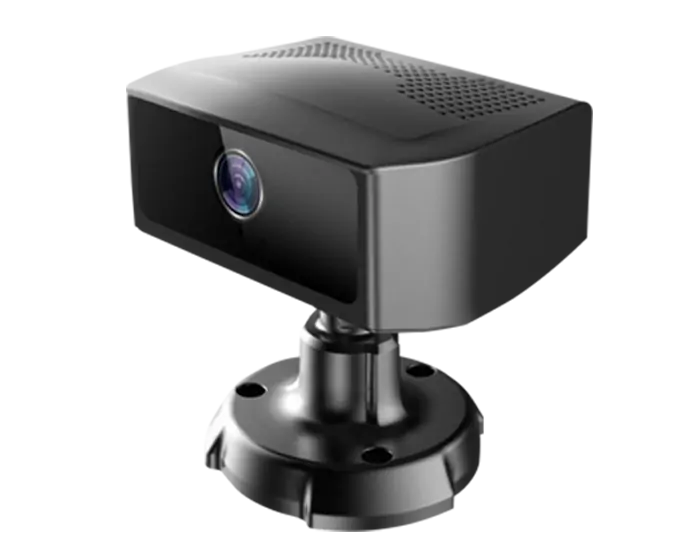

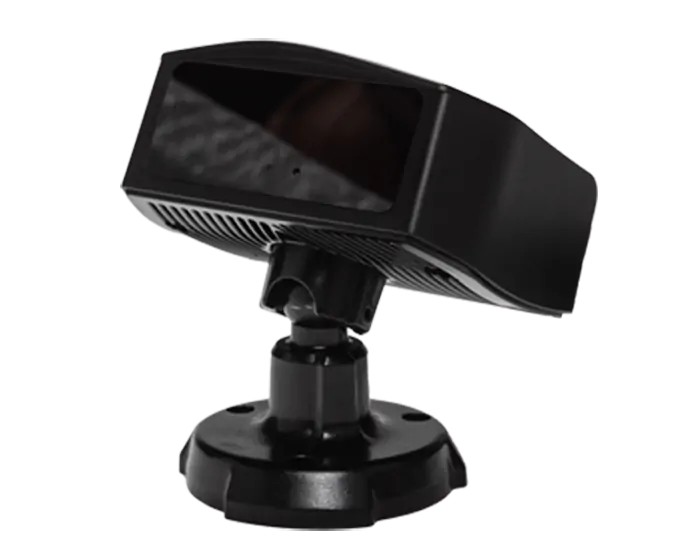

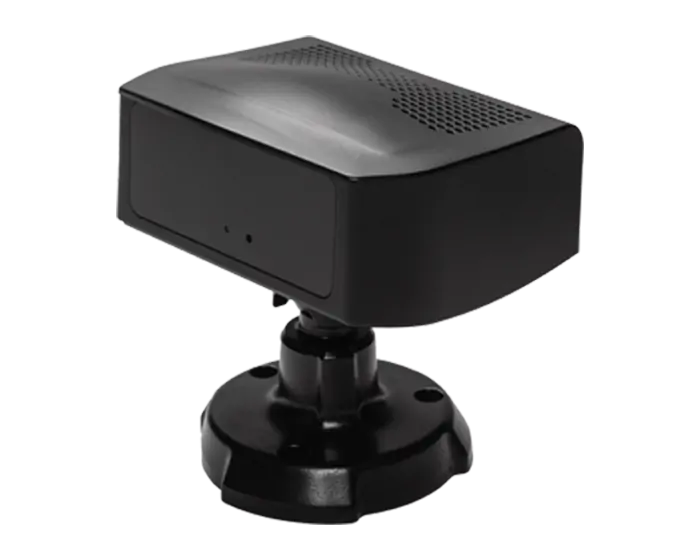

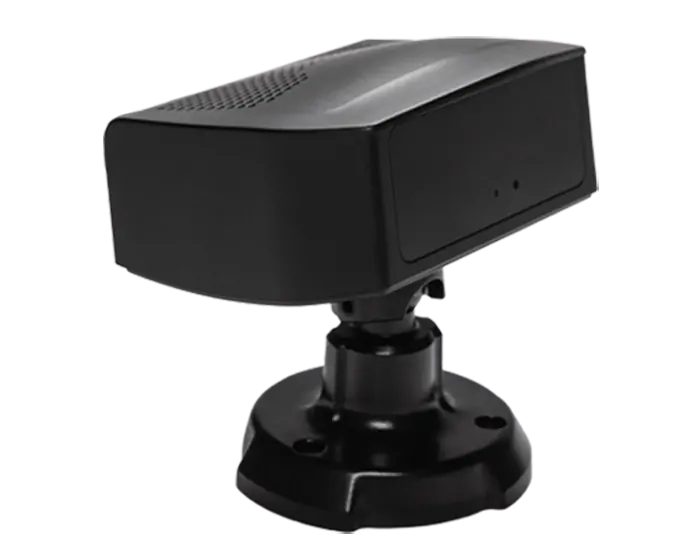

DS03P In-vehicle Intelligent Video Terminal

Tensortec's DS03P in-vehicle intelligent video terminal features a multi-core processor and a powerful AI neural system network processor, integrated built-in design, supports 2 IPC interfaces and 1 AHD interface, with maximum support for a single interface 1080P@30 frame, simultaneously supports serial port, 10 and other interfaces, the product has 4G network, Wi-Fi6 high-speed network, Bluetooth communication, BD&GPS positioning, support for SD card expansion storage, and built-in 2-megapixel DMS camera the head has an IP66 protection rating, a compact appearance and is easy to install.


This series of products is equipped with AI algorithms to achieve driver identity recognition, driver fatigue monitoring, and driver attention, it has the functions of mind monitoring and dangerous driving behavior monitoring, and can issue alerts in a timely manner for reminder. it can also be done through a serial port, it can be connected to various types of terminals in different ways, providing ADAS functions such as lane departure warning and front collision warning, Yes, it is applicable to fields such as logistics, freight transportation, and public transportation, aiming to enhance driving safety while allowing the fleet to manage "science becomes more efficient!"

Product Highlights
  • 01
    Fatigue Detection

    The driver yawns and keeps his eyes closed for more than 2 seconds.

    Report once every 5 seconds; (Adjustable interval time)


  • 02
    Distraction Detection
    The driver keeps looking up, looking down, turning left and turning right for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 03
    Driver Anomaly
    The driver is out of position and the face cannot be detected for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 04
    Make a Phone Call for Testing
    The driver holds the phone to his ear for more than 2 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 05
    Smoking Detection
    The driver holds the cigarette in his mouth for more than 2 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 06
    Alarm for Blocking the Camera
    The driver covers the camera screen with his hand or other objects for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 07
    Infrared Blocking
    The driver wore infrared-blocking sunglasses, which affected the camera's recognition of the driver's face for more than 3 seconds. Report once every 5 seconds; (Adjustable interval time)
  • 08
    Seat Belt Inspection
    The driver has not worn the seat belt for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
Application Scenarios
  • Taxi
  • Bus
  • School Bus
  • Logistics Vehicle
  • Forklift
  • Dump Truck
Product Specifications

Project Equipment Parameters Performance indicators
Performance Parameters Operating System Linux
Processor ARM Cortex-A53 1.5GHz
NPU 3.0 TOPS
Memory 1GB
EMMC 8GB
Startup Time Less than 10 Seconds
Video Video Input Built-in 1080P+ external 2*1080P/720P
Video Output AHD
Compression Standard Compatible with H.264/H.265
Video Standard PAL: 25FPS, NTSC: 30FPS
Audio Horn 2W
Microphone Supports 1 channel of G.276/PCM/AMR
Audio Compression ADPCM
Storage Local Storage SD card *1, expandable to 512GB
Wireless Communication WWAN 2G: GSM/GPRS/EDGE
3G: WCDMA/TD-SCDMA/CDMA2000
4G: FDD-LTE/TDD-LTE
WLAN Supports IEEE802.11/b/g/n
Bluetooth Support
Positioning GPS GPS/ Beidou /GLONASS, accuracy less than 15m
Protection Grade Waterproof and dustproof IP66
Operation and Maintenance Local USB Port
SD Card
Remote Operation and Maintenance Platform

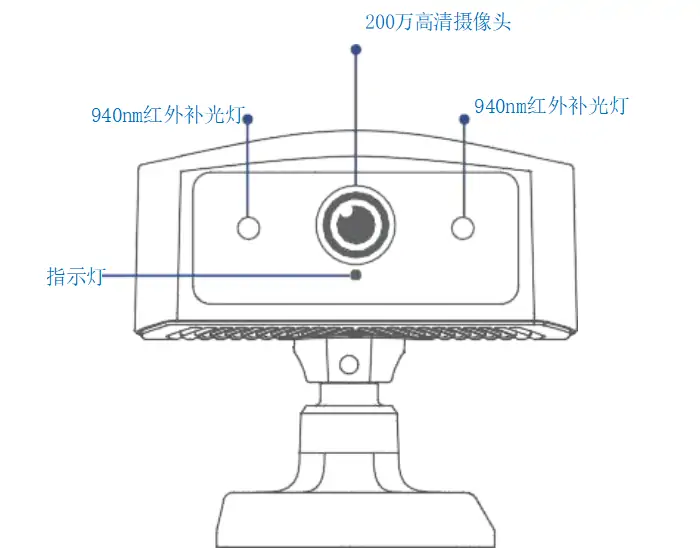

Camera Pixel 1080P
Focal Length 6mm
Infrared lamp 940nm
Working Distance 50-100cm
Working Conditions Day and Night

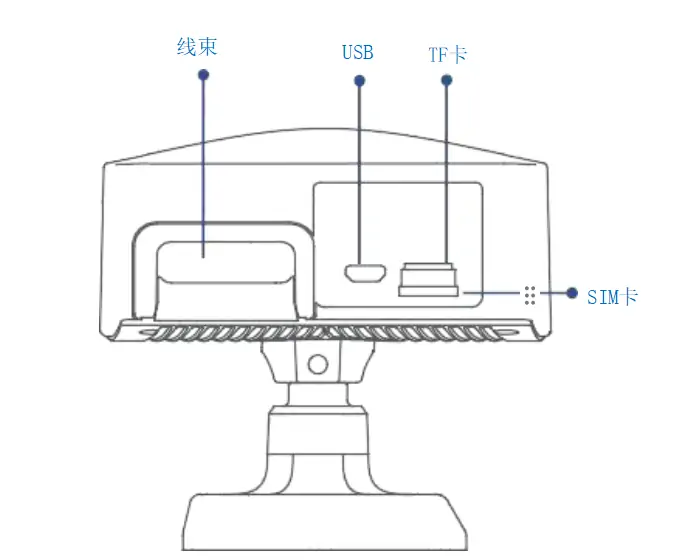

Interface RS232 Route 1
Micro USB Route 1
IO port IO input: 9-36V input
IO output: 12V output
Power Supply Power positive, power ground, ACC
Antenna GPS/ Beidou Antenna
Slot SIM Card 1
SD Card 1
Environmental Parameters Working Temperature -20℃~70℃
Storage Temperature -40℃~85℃
Relative Humidity 5%~80%(No condensation)
Power Supply and Power Consumption Working Voltage DC 9-36V, supporting ACC
Working Current ≤500mA@12V
Working Current DC12V/1A For AHD
Others RTC Support
Gsensor 6 axes
Indicator light One RGB three-color lamp
Appearance dimensions 92.8*85.5*102(mm)
Weight 0.44kg
Material Metal, plastic
