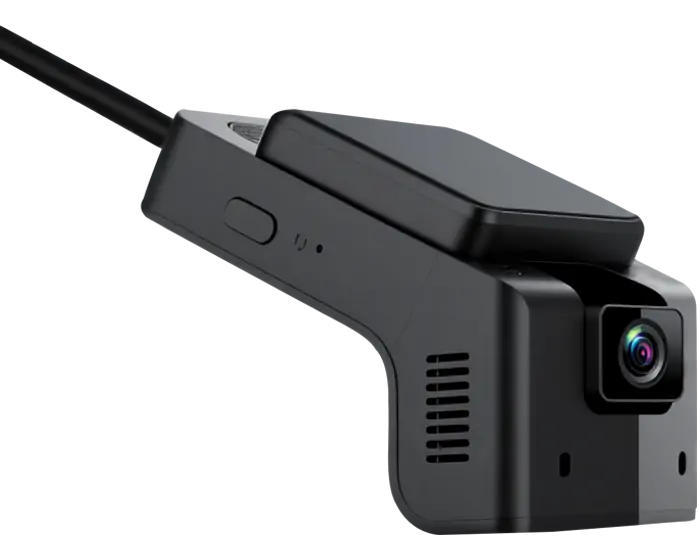

AD02 Intelligent Dashcam

Tensortec AD02 is a comprehensive automotive active safety dashcam that integrates satellite positioning, video monitoring, and active safety functions. This product meets the needs of fleet monitoring, management, driving safety, and standardized driving behavior. Based on advanced deep learning technology, its active safety features—including intelligent algorithms such as Advanced Driver Assistance System (ADAS), Driver Monitoring System (DMS), and Lane Change Assist (LCA)—can be applied to complex driving scenarios, enhancing traffic safety and efficiency while improving the overall user experience. The integration of artificial intelligence technology into the driving process further helps standardize safe driving behavior.


The product supports ministerial standards and protocols such as JT/T808, JT/T905, and JT/T1078, meeting the requirements for video monitoring management and driving behavior standardization in ride-hailing, taxi, and logistics fleet operations.


Product Highlights
  • 01
    The product functions are highly integrated and unified
    It is equipped with a built-in GPS antenna, 4G antenna, and dual 1080P cameras, making installation more convenient
  • 02
    Built-in ADAS and DMS algorithms
    The DMS camera has an ultra-wide 110° Angle and can be used for in-car monitoring, behavior driving analysis, and local face recognition comparison
  • 03
    LINUX System
    LINUX System
  • 04
    4G networking and satellite positioning
    Supports 4G networking and satellite positioning
  • 05
    1080P Integrated Video Recording
    Supports dual-channel 1080P integrated video recording both in the front and inside the vehicle
  • 06
    Support Video Playback
    It supports functions such as real-time video playback, historical video playback, emergency alarm, and TTS text information distribution
  • 07
    Supports ADAS/DMS
    Support AI algorithms such as ADAS/DMS face recognition
  • 08
    Dual-channel 1080P video recording
    It can support up to dual 1080P video recording (2 channels of 720P with algorithm version).
  • 09
    Emergency Alarm
    Supports sudden acceleration/sudden deceleration/sharp turn alarm and collision alarm
  • 010
    Support Remote Wake-up
    After supporting ACC OFF, the low-power sleep mode can be remotely awakened
  • 011
    Support Voice
    Voice support for intercom and monitoring
  • 012
    Support Dual IP
    Support dual IP reporting
Application Scenarios
  • Online Car-hailing
  • Taxi
  • Logistics Fleet
Product Specifications
Project Parameter Specification
Name AD02 Intelligent Dashcam
CPU SA230D Dual-Core processor@1.2GHz,0.5T NPU
System OS Linux
Storage RAM Embedded 1Gb DDR3L
ROM 128Mb SPI NOR Flash
TF Card Single TF card (up to 512GB supported)
Display Screen TFT LCD MIPI-4L, with reserved FPC seats
TV-OUT No
Keyboard Capacitive Touch Screen No
Mechanical Key RESET、WIFI-KEY
Functional Interface Camera 1 MIPI,1080P/25 frames
Camera 1 MIPI, 1080P/25 frames, supports light sensing, with IR switching
4G USB0 HOST, FPC Antenna
GPS/BD GMOS, 3.3V, cable leads out TTL serial port
Wi-Fi Built-in USB-8188 module, Wi-Fi:IEEE802 b/g/n, built-in FPC antenna
G-sensor 3-axis, DA380
Gyroscope 6-axis, BMI160, reserved and optional
Horn 1.1W/8Ω, 1.25mm pitch socket
MIC Built-in on-board
Indicator light 4-channel on-board (working status, video recording status, network connection status, login status)
Watchdog Hardware reset (Optional reserved)
Power Input 12V(DC9~16V)
