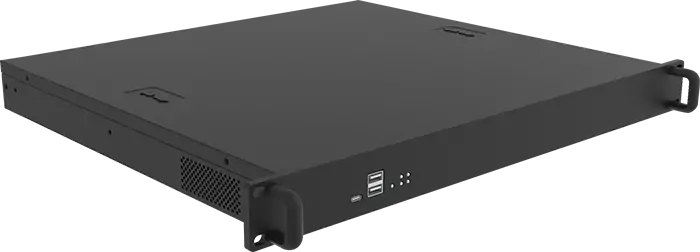

TS-SG-SE7(1U)Series

With 5G+AI serving as the engine for the development of the digital economy, the empowerment and penetration of AI continue to expand across industries. AI edge computing, leveraging advantages such as low latency, stability, reliability, and flexible scalability, combined with a cloud-edge integrated application architecture, has emerged as a new trend in data-driven empowerment. The Tensortec TS-SG-SE71U series AI Edge Computing All-in-One is an AI edge computing product developed based on the domestically produced Sophon embedded ARM architecture and the high-performance SoC chip BM1684X. It offers a mature, comprehensive, stable, and reliable AI hardware and software development environment along with comprehensive support services, simplifying algorithm migration and facilitating product engineering development, thereby significantly shortening the deployment cycle of AI solutions. Designed for industrial applications with a fanless construction, it delivers stable and reliable performance.

Product Highlights
  • 01
    National AI Computing Power
    BM1684X 32TOPS INT8, 32-channel 1080P video decoding; Supports mixed-precision computing, 32TFLOPS INT8, 16TFLOPS FP16/BF16, 2.2 TFLOPS FP32.
  • 02
    Industrial-grade fan active cooling design
    The industrial-grade fan features an active cooling design and supports 220V power supply.
  • 03
    Rich interfaces and flexible deployment capabilities, AIoT edge integration
    USB, HDMI, RS-485, RS232, RJ45, I/O, etc.
  • 04
    Supports SSD solid-state drive expansion
    Supports SSD solid-state drive expansion, up to 2TB, and supports SATA hard drive expansion bits.
Application Scenarios
  • Safety Emergency Response
    Smart construction sites, factories, warehouses, gas stations, fire emergency response, confined Spaces, etc
  • Intelligent Transportation
    Holographic intersections, vehicle-road coordination, etc
  • Smart Finance
    Smart outlets, vaults, etc
  • Smart City
    Smart communities, parks, campuses, smart governance, etc
  • Intelligent Manufacturing
    Industrial vision inspection, etc
Product Specifications
Product Specification AI Edge Computing Power All-in-one Machine TS-SG-SE7 (1U)
Operating System SoC SOPHGO BM1684X
CPU ARM A53 8 Cores 2.3GHz
TPU Computing Power 32 TOPS INT8;16 TFLOPS FP16/BF16;2.2 TFLOPS FP32;Support mixed-precision calculation
Memory DDR4 16GB
eMMC 64GB eMMC 5.1
OS Ubuntu Linux
Video Coding Video encoding: H.264 & H.265:12 channels of 1080P@25fps; The maximum resolution supports 7680*4320
Decoding Video decoding: H.264 & H.265:32 channels 1080P@25fps; The maximum resolution supports 7680*4320
HDMI 1 x HDMI 2.0
LAN RJ45 2*100M/1000M
I/O (Phoenix Terminal Plug) USB 2* USB3.0;2*USB2.0;1*TYPEC debug
RS485 4-bit(3IN-3OUT)GPIO,2*GND,connector with RS485
DI/DO 1*,D+ and D-,connector with DI/DO
RS232 1*,RXD and TXD,connector with DI/DO
Audio In/Out 3.5mm Earphone holder
Wireless Transmission 1* NANO SIM,1* Micro SD;1* 4G/5G,1*GPS,1*Wi-Fi
Hard disk expansion M.2 2280 sata SSD(Upper 2TB)
Key Reset*1
Power Conn Triangular power supply plug terminal, 3-pin; Supports operation on 220V to 240V AC power
Indicator Power/run Power indicator (Green power on, NO light power off);System operation indication
4G/HDD 4G signal indication、HDD indication
Size 482.0*400.0*44.5mm
Environment Operational Temperature:-40℃(Non-cold start)-70℃; Storage Temperature:-20℃-80℃
