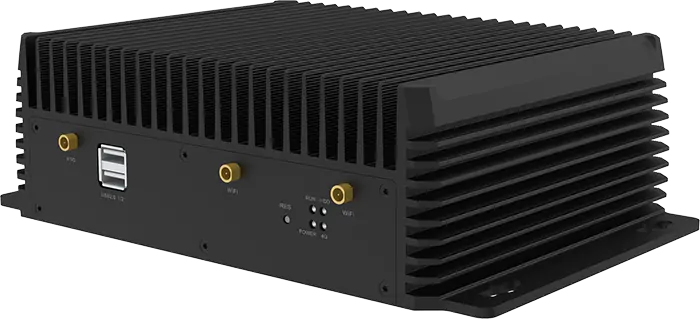

TS-SG-SE7 Series

With 5G+AI serving as the engine for the development of the digital economy, AI empowerment and penetration are becoming increasingly widespread. AI edge computing, leveraging advantages such as low latency, stability, reliability, and flexible scalability, combined with a cloud-edge integrated application system, has emerged as a new trend in data empowerment. The Tensortec AI Edge Computing Box TS-SGSE series is an AI edge computing product developed based on the domestically produced Sophon embedded ARM architecture and the high-performance SoC chips BM1684/BM1684X. It offers a mature, comprehensive, stable, and reliable AI hardware and software development environment along with supporting services, making algorithm porting simple and product engineering development easier. This significantly shortens the deployment cycle of AI products. Featuring an industrial-grade, fanless design, the product ensures stable and reliable operation.

Product Highlights
  • 01
    National AI Computing Power
    Calculate BM1684 17.6TOPS INT8, 32 channels 1080P code; BM1684X 32TOPS INT8, 32-channel 1080P video decoding, supports mixed-precision computing, 16 TFLOPS FP16/BF16, 2.2 TFLOPS FP32.
  • 02
    Supports a wide-temperature working environment
    Industrial-grade fanless passive cooling design, supporting wide-temperature working environments.
  • 03
    Rich interfaces and flexible deployment capabilities, AIoT edge integration
    USB, HDMI, RS-485, RS232, RJ45, I/O, etc.
  • 04
    Supports GPS/ Beidou positioning
    Supports sub-meter positioning.
  • 05
    Support dual frequencies
    Supports dual-band WiFi/4G/5G modules, and supports SSD solid-state drive expansion, up to 2TB.
Application Scenarios
  • Safety Emergency Response
    Smart construction sites, factories, warehouses, gas stations, fire emergency response, confined Spaces, etc.
  • Intelligent Transportation
    Holographic intersections, vehicle-road coordination, etc.
  • Smart Finance
    Smart outlets, vaults;
  • Smart City
    Smart community park, Smart Campus, Smart governance, etc.
  • Intelligent Manufacturing
    Industrial vision inspection, etc.
Product Specifications
Product Specification AI Edge Computing Power Box TS - SG - SE5TP AI Edge Computing Power Box TS - SG - SE7TP
Operating System SoC SOPHGO BM1684 SOPHGO BM1684X
CPU ARM A53 8 Cores 2.3GHz ARM A53 8 Cores 2.3GHz
TPU Computing Power 17.6TOPS INT8; 16 TFLOPS FP16/BF16; 2 TFLOPS FP32; Support mixed-precision calculation 32TOPS INT8; 16 TFLOPS FP16/BF16; 2 TFLOPS FP32; Support mixed-precision calculation
Memory DDR4 12GB DDR4 16GB
eMMC 32GB eMMC 5.1 64GB eMMC 5.1
OS Ubuntu Linux Ubuntu Linux
Video Coding Video Coding:H.264 &;H.265:1080P@50fps;Maximum resolution support 4K Video Coding:H.264 &;H.265: Route 12 1080P@25fps;Maximum resolution support 7680*4320
Decoding Video Decoding:H.264 &;H.265:1080P@960fps;Maximum resolution support 8K Video Decoding:H.264 &;H.265: Route 32 1080P@25fps;Maximum resolution support 7680*4320
HDMI 1 x HDMI 2.0 1 x HDMI 2.0
LAN RJ45 2*100M/1000M
I/O (Phoenix Terminal Plug) USB 2USB3.0;2USB2.0;
RS485 1*A and B Connector With RS232
DI/DO 3 - Bit(4IN - 4OUT)GPIO,2*GND,connector with GND
RS232 1* RS232 RX and RS232 TX connector with RS485
Audio In/Out 3.5mm Earphone holder
Wireless Transmission 1NANO SIM,Micro SD;1* 4G/5G,1GPS,1Wi - Fi;
Hard Disk Expansion M.2 2280 sata SSD(Upper 2TB)
Key Reset Reset*1
Power Conn S power terminal,4Pin;DC12V 5A
Indicator Power/run Power indicator (Green power on,NO light power off);System operation indication
4G/HDD 4G signal indication、HDD indication
Size 243.0 (L)*160.0 (W)*73.0 (H) mm(Does not include antenna)
Environment Operational Temperature:- 40℃ - 70℃;Storage Temperature:- 40℃ - 80℃
