TS-NV-P300 Series

With 5G+AI serving as the engine driving the growth of the digital economy, the penetration of AI empowerment continues to broaden across sectors. AI edge computing, leveraging its advantages of low latency, stability, reliability, and flexible scalability—and integrated with cloud-edge convergence application systems—has emerged as a key trend in data-driven intelligence.

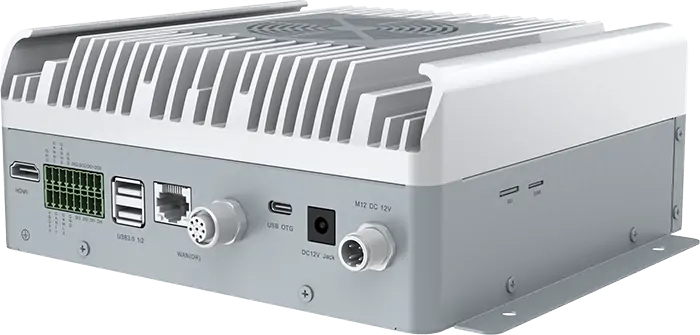

The Tensortec TS‑NV‑P300 series AI Edge Computing Box is an edge computing product developed based on the NVIDIA Jetson Xavier NX/TX2 NX/NANO/ORIN NX/ORIN NANO embedded ARM architecture and high-performance SoC chips. It provides a mature, comprehensive, and reliable AI hardware and software development environment alongside full-spectrum support services, simplifying algorithm migration and streamlining product engineering development—thereby significantly shortening the time-to-market for AI solutions. Designed with industrial-grade robustness, the product ensures stable and reliable operation.

Product Highlights
  • 01
    The algorithm transplantation cycle is short
    Nvidia jeston jetpack Standard Development Kit: Ubuntu Linux OS, CUDA, cuDNN, OpenCV, TensorRT etc, support Caffe/TensorFlow/Pytorch/Mxnet/Paddle Lite degree of mainstream learning framework, etc.
  • 02
    Ultra-high-performance AI computing and codec capabilities
    The GPU has strong comprehensive computing power and is equipped with the latest NVIDIA AI engine TensorRT.
  • 03
    Rich interfaces and flexible deployment capabilities, AIoT edge integration
    USB, HDMI, RS-485, RS232, CAN, RJ45, self-righteous I/O, etc.
  • 04
    Support high-precision GPS
    1 Gigabit WAN+4* Gigabit POE cards; Support high-precision GPS; Supports Wi-Fi, 4G/5G.
  • 05
    Supports Overall Expansion
    Supports M.2 NVMe SSD overall disk expansion.
  • 06
    Vehicle-grade products, stable and reliable
    The copper sheet and condensing silicone grease have excellent heat dissipation performance, are resistant to surges and lightning strikes, support wide voltage /ECC system for vehicles, wide temperature working environment, and support aviation power sockets and aviation power socket network ports.
Application Scenarios
  • Industrial Machine Vision
    Industrial vision inspection, etc
  • Intelligent Transportation
    Holographic intersections, vehicle-road coordination, etc
  • Smart Vehicle
    Road maintenance, smart patrol, unmanned vehicles, intelligent education and training vehicles, etc
Product Specifications
Product Specification AI Edge Computing Power Box TS-NV-P300(16GB/8GB) AI Edge Computing Power Box TS-NV-P300X(8GB/4GB) AI Edge Computing Power Box TS-NV-P300S(16GB/8GB)
Operating System SoC NVIDIA Xavier NX NVIDIA ORIN NANO NVIDIA ORIN NX
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 Cores Arm®Cortex®-A78AE v8.2 64CPU;1.5GHZ 16GB:8 Cores ARM Cortex A78AE V8.2 64位
8GB:6 Cores ARM Cortex A78AE V8.2 64位
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores 8GB: 1024*CUDA cores and 32 Tensor cores Ampere architecture
4GB: 512*CUDA cores and 16 Tensor cores Ampere architecture
1024*CUDA cores and 32 Tensor Core Ampere architecture
Memory 8GB or 16GB LPDDR4x 59.7GB/S 8GB 128位LPDDR5 68 GB/s;4GB 64-bit LPDDR5 34GB/S 16/8GB 128位LPDDR5 102.4GB/S
eMMC 16GB eMMC 5.1 Supports external NVME Supports external NVME
Computing Power INT8:21Tops;FP16 8GB:40TOPS(INT8);4GB:20TOPS(INT8) 16GB:100TOPS(INT8);8GB:70TOPS(INT8)
Video Coding 20*1080P30(H.264)|4*4K P30 4*1080P30 1*4k60(H.265)|14*1080P30(H.265)
Decoding 22*1080P30(H.264)|12*4K P30 1*4K60(H.265)/2*4K30(H.265)/11*1080P30(H.265) 24*1080p30(H.265)|6*4k 30(H.265)

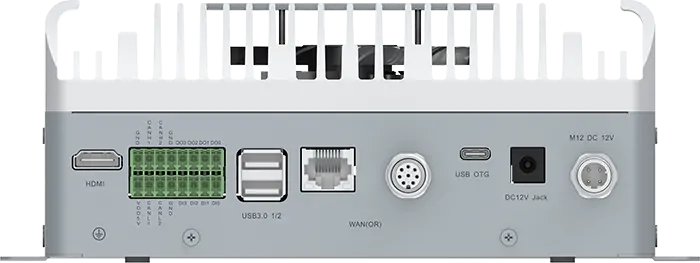

HDMI 1 x HDMI 2.0

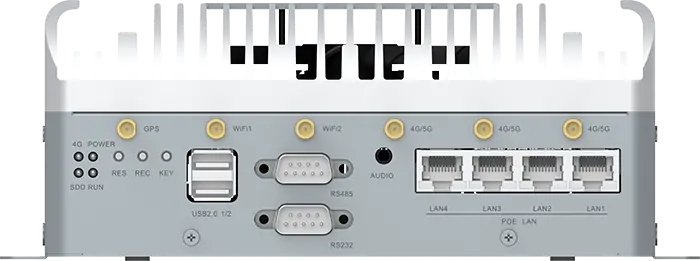

LAN RJ45 1*100M/1000M M12 or RJ45,4*POE RJ45 100M/1000M
USB USB 2* USB3.0;2*USB2.0;1*USB TypeC debug
I/O (Phoenix Terminal Plug) RS485 1*,D+ and D-,connector with DB9
DI/DO 6-bit(3IN-3OUT)GPIO,2*GND,connector with Phoenix Terminal
RS232 1*,RXD and TXD,connector with DB9
CAN 2*CAN with Phoenix Terminal
Expand Expand M.2 nvme SSD(Upper 2TB);1* NANO SIM,1* Micro SD;1* 4G/5G,1*GPS,1*Wi-Fi
Audio Audio In/Out 3.5mm Earphone holder
Key Key Recovery*1;Reset*1
Power Conn aviation plug,4Pin;DC 9 ~ 36V (Typical:DC12V 5A),Supports in-vehicle ECC system
Indicator Power/run Power indicator (green power on,NO light power off);System operation indication
4G/HDD 4G signal indication (green, resident network on, search network flashing, offline off)
Size 192.0*183.0*81.0mm(No antenna),3KG
Environment Operational Temperature:-20℃—70℃;Storage Temperature:-40℃—80℃
