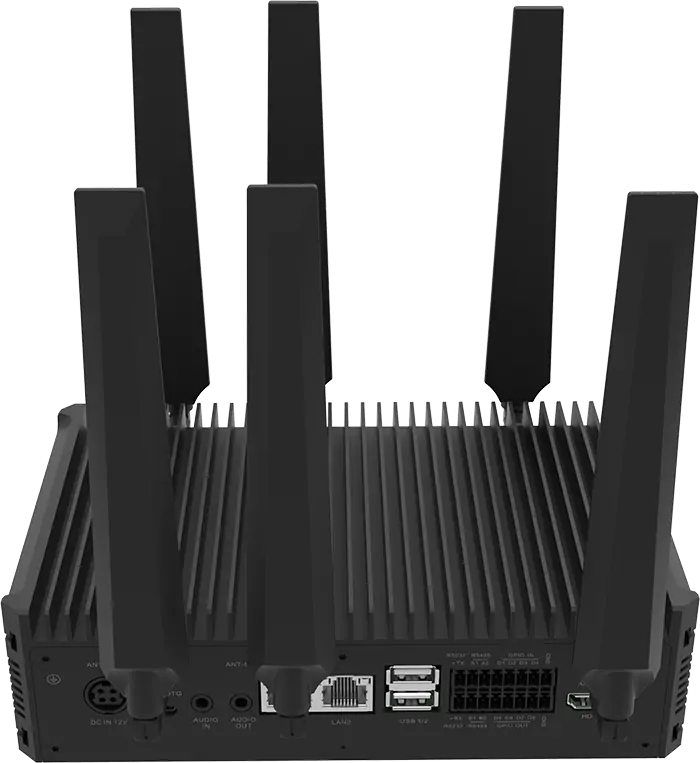

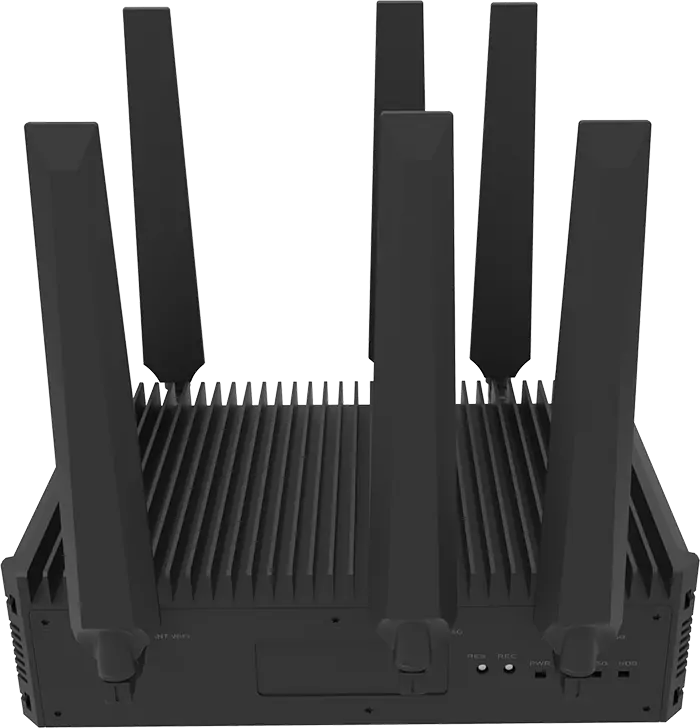

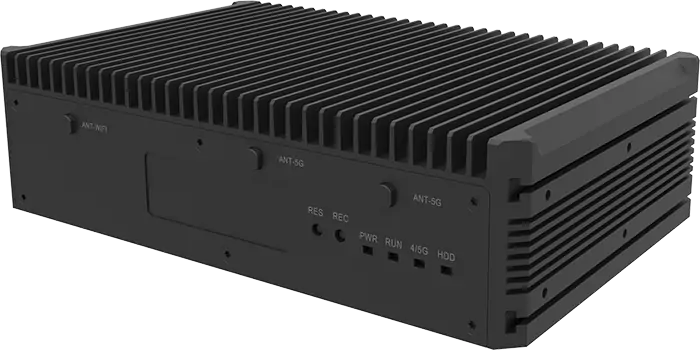

TS-RK-F100 Series

As 5G+AI+IoT becomes the engine driving the growth of the intelligent digital economy, the penetration of AIoT empowerment continues to expand. AI edge computing boxes, leveraging advantages such as low latency, high security, and extensive connectivity—and integrated with cloud-edge convergence application systems—enable more effective data sensing and facilitate intelligent digital transformation.


The Tensortec TS‑RK‑F100 series AI Edge Computing Box is an intelligent product developed based on advanced embedded ARM architectures such as the domestic Rockchip RK3568/RK3588 and high-performance SoC chips. It offers a mature, comprehensive, and stable AIoT hardware and software development environment along with full-range support services, simplifying algorithm migration and making IoT connections more convenient. This streamlines product engineering development and significantly shortens the time‑to‑market for AIoT solutions. Designed with industrial-grade robustness, the product ensures stable and reliable operation.

Product Highlights
  • 01
    Professional AI edge computing box
    Combining AI, IoT, connectivity, and high security.
  • 02
    Full-stack system capability
    Ubuntu Linux/ Debian/ Android。
  • 03
    Rich interfaces and flexible deployment capabilities
    Dual Gigabit cards such as USB, HDMI, RS-485, RS232, RJ45, self-righteous I/O, and MINI PCIE support dual network IP Settings, internal and external network isolation and other applications, suitable for various networking environments.
  • 04
    Supports multiple wireless transmissions
    Supports various wireless transmissions such as GPS, Wi-Fi, 4G/5G LTE, Lora, etc.
  • 05
    Support hard disk expansion
    Supports M.2 NVMe SSD hard disk expansion.
  • 06
    Industrial-grade products, stable and reliable
    Condensing silicone grease has excellent heat dissipation performance, is resistant to surges and lightning strikes, and supports wide-temperature working environments.
Application Scenarios
  • Smart Vehicle
    Mobile patrol law enforcement
  • Food Safety
    Open kitchens and transparent stoves, etc
  • Work Safety
    Smart construction sites, chemical plants, storage and gas stations, fire emergency response, etc
  • Intelligent Inspection
    Power inspection, unmanned operation, etc
  • New Retail
    Business halls, supermarkets, chain stores, etc
Product Specifications
Product Specification AI Edge Computing Power Box
TS-RK-F100 (2GB/4GB)
Operating System SoC RockChip RK3568
CPU RK3568 4-core 64 bit Cortex-A55 CPU,ARM v8.2-A,2.0GHz
GPU GPU Mali - G522EE,OpenGL ES3.2/2.0/1.1,Vulkan1.1
Memory DDR4 2GB/4GB
eMMC 16/32GB eMMC 5.1
OS Default Debian10 (customizable Debian11)
Computing Power Computing Power 1Tops(INT8)
Video Coding 1080P 100fps H.265/H.264
Decoding 4K 60fps H.265/H.264 /VP98*1080P H264
HDMI 1 x HDMI 2.0 Output
LAN RJ45 2*100M/1000M Wired network port
USB USB 1* USB3.0;1USB2.0;1USB 2.0 debug
I/O (Phoenix Terminal Plug) RS485 2* D+ and D-,connector with DI/DO(The motherboard supports lead-out)
DI/DO 8-bit (4IN-4OUT) GPIO,2*GND,connector with RS485(The motherboard supports lead-out)
RS232 1*, RXD and TXD,connector with DI/DO(The motherboard supports lead-out)
Expand Expand M.2 nvme SSD(Upper 2TB);1* NANO SIM,1* Micro SD;1* 4G/5G,1GPS,1Wi - Fi
Audio Audio In/Out 3.5mm Earphone holder
Key Key Recovery1;Reset1
Power Conn 4-pin aviation plug DC 9-19V (Typical: DC12V 2A)
Indicator Power/run Power indicator light (blue light, constantly on: powered on; off: powered off; system operation indicator light RUN)
4G/HDD 4G signal indicator light (blue light, constantly on: stable signal; flashing: search signal; no light: no signal)
Size 195.6(L)*125.0(W)*53.5(H)mm;2kg
Environment Operational Temperature:-20℃--65℃;Storage Temperature:-30℃--80℃
