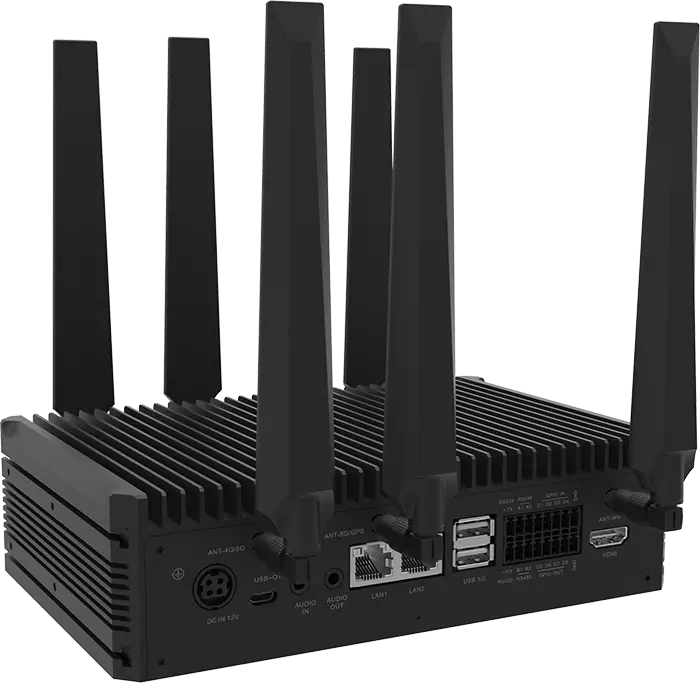

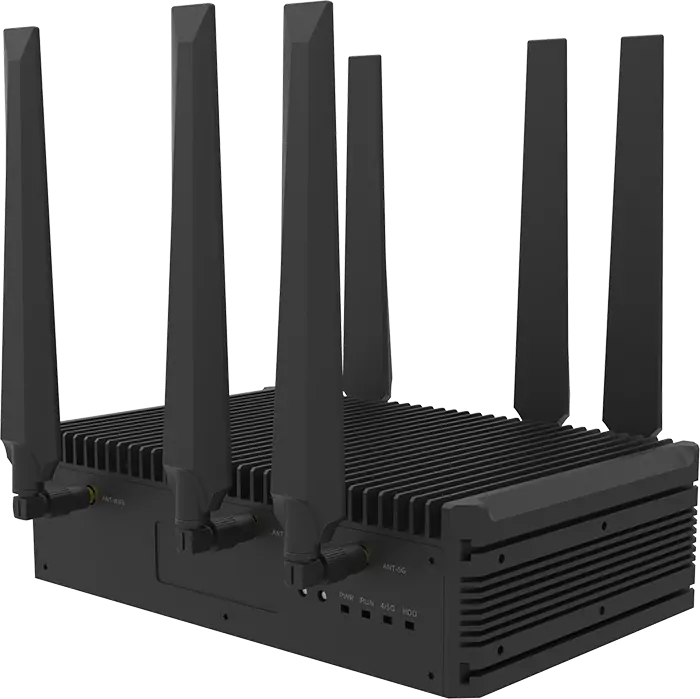

TS-SG-SE9 Series

With 5G+AI serving as the engine for the development of the digital economy, AI empowerment and penetration are becoming increasingly widespread. AI edge computing, leveraging advantages such as low latency, stability, reliability, and flexible scalability, combined with a cloud-edge integrated application system, has emerged as a new trend in data empowerment. The Tensortec TS-SG-SE9 series AI Edge Computing Box is an AI edge computing product developed based on Sophon’s A2 chip (BM1688/CV186AH) embedded ARM architecture and high-performance SoC chips. It offers a mature, comprehensive, stable, and reliable AI hardware and software development environment along with supporting services, making algorithm porting simple and product engineering development easier. This significantly shortens the deployment cycle of AI products. Designed for industrial applications, it ensures stable and reliable operation.

Product Highlights
  • 01
    The algorithm transplantation cycle is short
    Embedded system algorithm is easy to use, the migration tool chain support Caffe/TensorFlow/Pytorch/Mxnet/Paddle Lite degree of mainstream learning framework, etc.
  • 02
    Ultra-high performance AI computing/codec capabilities
    The TPU has excellent computing power, at 10,000 W/Tops.
  • 03

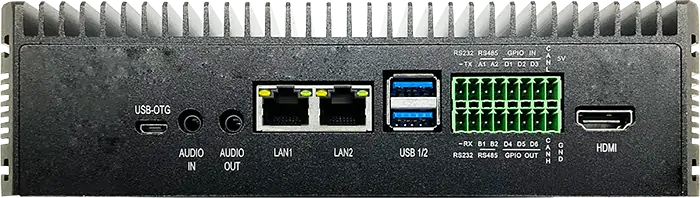

    Rich interfaces and flexible deployment capabilities, AIoT edge integration
    USB, HDMI, RS-485, RS232, CAN, RJ45, custom I/O, etc.
  • 04
    Dual Gigabit Network Cards
    Supports dual network IP Settings, isolation between internal and external networks, and other applications, suitable for various networking environments. Supports GPS, wiFi, 4G/5G LTE wireless transmission.
  • 05
    System disk expansion
    Supports M.2 NVMe SSD system disk expansion.
  • 06
    Industrial-grade products, stable and reliable
    Fanless, with copper sheets and condensing silicone grease, it has excellent heat dissipation performance, is resistant to surges and lightning strikes, and supports wide-temperature working environments.
Application Scenarios
  • Smart Security
    Communities/parks, campuses, banks, urban complexes, etc.
  • Intelligent Transportation
    Road maintenance, holographic intersections, vehicle-road coordination, etc.
  • Smart Finance
    Smart outlets, vaults, etc.
  • Work Safety
    Smart construction sites, factories, warehouses, gas stations, fire emergency response, etc.
  • Industrial Machine Vision
    Industrial vision inspection, etc.
  • Intelligent Inspection
    Power inspection, unmanned operation, etc.
  • New Retail
    Business halls, supermarkets, chains, etc.
Product Specifications
Product Specification AI Edge Computing Power Box TS - SG - SE9(8GB/16GB) AI Edge Computing Power Box TS - SG - SE9M(8GB/4GB)
Operating System SoC SOPHGO BM1688 SOPHGO CV186AH
CPU ARM A53 8 核 1.6GHz ARM A53 6 核 1.6GHz
TPU computing power 16TOPS INT8;32TOPS INT4;4T FLOPS FP16 BF16;0.5 TFLOPS FP32;Support mixed-precision calculation 6TOPS INT8;12 TOPS INT4;1.5T FLOPS FP16/BF16 Support mixed-precision calculation
Memory DDR4 8GB/DDR4 16GB DDR4 8GB/DDR4 4GB
eMMC 32GB eMMC5.1/64GB eMMC5.1 32GB eMMC5.1/64GB eMMC5.1
OS Ubuntu Linux Ubuntu Linux
Video Coding Video Coding:H.264 & H.265:Route 10 1080P@30fps Maximum resolution support 76804320 Video Coding:H.264 & H.265: Route 10 1080P@30fps Maximum resolution support 76804320
Decoding Video Decoding:H.264 & H.265: Route 16 1080P@30fps Maximum resolution support 76804320 Video Decoding:H.264 & H.265: Route 32 1080P@30fps Maximum resolution support 7680*4320
HDMI 1 x HDMI 2.0
LAN RJ45 2*100M/1000M
USB USB 2USB 3.0;1USB 2.0 debug
I/O (Phoenix Terminal Plug) RS485 2*,D+ and D-,connector with DI/DO
DI/DO 6 - bit(3IN - 3OUT)GPIO,2*GND,connector with RS485
RS232 1*, RXD and TXD, connector with DI/DO
CAN 1*CAN
Expand Expand M.2 nvme SSD(Upper 2TB)1NANO SIM,1Micro SD;14G/5G,1GPS,1*Wi - Fi;
Audio Audio In/Out 3.5mm Earphone holder
Key Key Recovery1;Reset1
Power Conn aviation plug,4Pin DC 9 - 24V (Typical:DC12V 5A)

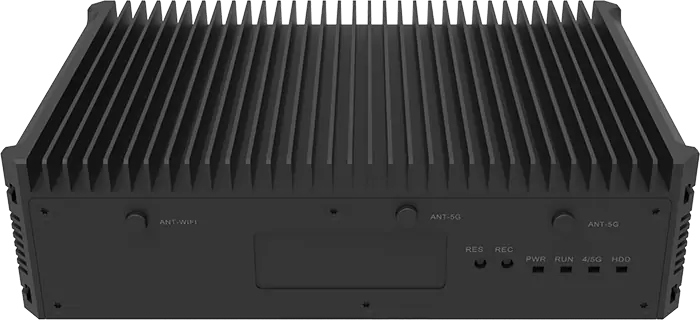

Indicator Power/run Power indicator (blue power on,NO light power off);System operation indication
4G/HDD 4G signal indication (blue,resident network on,search network flashing,offline off)
Size 195.6(L)*125.0(W)*53.5(H)mm 2kg
Environment Operational Temperature:- 20℃ - 65℃;Storage Temperature:- 40℃ - 80℃
