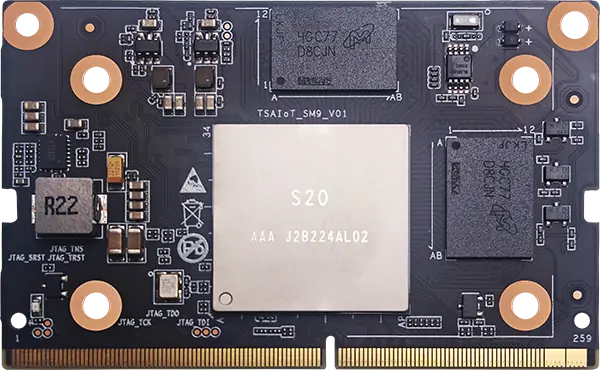

TS-SG-SM9 Series

The Tensortec AI Computing Module TS-SG-SM9 series is equipped with Sophgo's highly integrated processor chips CV186AH/BM1688, featuring low power consumption, powerful computing capabilities, rich interfaces, and excellent compatibility. With 7.2–16 TOPS INT8 computing power and support for INT4/INT8/FP16/BF16/FP32 mixed-precision computing, it can handle real-time analysis of up to 16 channels of high-definition video. It flexibly adapts to scenarios such as image, voice, and natural language processing, and is widely applicable in various products including intelligent computing servers, edge AI computing boxes, industrial computers, drones, and AIoT devices.

Product Highlights
  • 01
    High energy efficiency ratio, with flexibility

    16-channel high-definition video intelligent analysis
    7.2-16TOPS INT8 computing power, compatible with INT4/INT8/FP16/BF16/FP32 mixed-precision calculations


  • 02
    Super strong multimedia capability

    Supports 16-channel high-definition hard decoding and 10-channel high-definition hard editing
    Supports multiple VI input channels, audio input, and ISP
    Supports hard acceleration such as binocular depth, image stitching, and fisheye unfolding


  • 03
    Rich peripherals, wide temperature range and low power consumption, more flexible deployment

    Supports SATA/USB/GbE/HDMI/CAN/SDIO, etc
    Lower power consumption, wide-temperature design, and stronger adaptability


  • 04
    Compatible with NV Orin Nano/NX column modules, leading in cost performance

    Pin-to-pin compatibility, with a richer Pinlist/Pinmux
    4GB/8GB/16GB LPDDR4 configurations are available


  • 05
    Support multimodal large models
    It supports up to 2-3B multimodal large models and models such as Tongyi Qianwen
Application Scenarios
  • Smart City
  • Intelligent Transportation
  • Smart Power
  • Smart Oil and Gas
  • Smart Community
  • Smart Business Hall
  • Intelligent Manufacturing
  • Smart Warehousing
Product Specifications
Product Name AI computing power module
Product Model TS-SG-SM9 Series
Processor CV186AH 6 Cores ARM A53 1.6GHZ,BM1688 8ARM A53 1.6GHz
AI Computing Power CV186AH with 7.2TOPTS computing power and BM1688 with 16TOPS INT8 computing power
Memory CV186AH 4/8GB RAM,BM1688 8/16GB RAM,LPDDR4 x 64bits 4266Mbps
Video Decoding H. 264 and h. 265:16 x1080p @ 30 FPS, 8192 * 8192/8 k / 4 k / 1080 p / 720 p/D1 / CIF
Video Coding H.264&H.265:10x1080P@30fps, 8K/4K/1080P/720P/D1/CIF
CV IVE/VPSS + DPU (binocular depth) +Stitch (image stitching) + Dewarp (fisheye unfolding)
Display Interface 1 x HDMI 2.0
Other Interfaces 2 x SATA3.0,1 x CAN,1 x SD/SDIO,4 x UART,4x I2C,6 x PWM,2 x SPI,ADC,GPIOs
Storage 32GB eMMC 5.1
Image encoding and decoding JPEG:1080P@480fps, maximum support 32768*32768
Audio and video input 6 x VI 2 x I2S / 2 x dual-channel input and output (optional)
ISP 2 x 8Mp30,2f-HDR,3DNR/LDC/3A/Dehaze
PCIE PCIe Gen3 1 x 2+1 x 2 RC&EP
USB 2 x USB3.0,2 x USB2.0
Network 2 x GbE
Power Supply DC 5V
Working Temperature -20℃ ~ +70℃
Connector 260-pin SO-DIMM
Size 69.6 x 45.0 x 6.0mm
