AI NAS N500

In today's era of explosive data growth, efficiently managing massive volumes of files and quickly accessing key information has become a common challenge for modern individuals and organizations. Tensortec officially unveils its revolutionary product—the Tensor AI NAS (Artificial Intelligence Network Attached Storage) TS-SG-N500 series. This product line seamlessly integrates artificial intelligence technology with network-attached storage devices, aiming to provide users with an intelligent and "thinking" storage solution, fundamentally transforming the way individuals and enterprises manage data.

Designed with the core philosophy of "compact size, powerful performance," the Tensortec AI NAS TS-SG-N500 series is built on the Sophon intelligent vision deep learning processor BM1688. Equipped with built-in AI technology, it enables intelligent data search, classification, recognition, and management. Beyond traditional file storage capabilities, it leverages AI algorithms for intelligent data analysis and processing, enhancing both user experience and work efficiency. Furthermore, the deep integration of high-performance storage and AI agent technology delivers a revolutionary data management and intelligent interaction experience for smart homes and enterprises.

Manual download Contact us

Product Highlights

01

AI Data Manager

Data is a precious asset in our life and work. Whether it is precious family photos, important work documents, or favorite film and television resources, they can all be properly protected in Sophgo AI NAS products.
02

Privacy Protection and Data Security

With Sophgo AI NAS products, sensitive data does not need to be uploaded to the cloud. It is processed locally by AI, allowing you to own the data and avoid the risk of privacy leakage.
03

More efficient and accurate content retrieval

Quickly and accurately finding the needed content in the ocean of data is the key to improving work efficiency and the quality of life. Sophgo AI NAS is equipped with advanced content-based AI retrieval technology. Users do not need to remember file names and can quickly find the files they need based on content, features, or even vague descriptions.
04

High cost performance and ease of use

The Sophgo AI NAS solution has a significant cost advantage over other AI NAS solutions. At the same time, it offers differentiated, rich and practical AI expansion functions, which can help brand manufacturers achieve the greatest value return with the least investment.
05

AI Photo Album

Support centralized album display and achieve intelligent analysis and classification of albums through AI, realizing an intelligent picture manager.
06

AI Retrieval

By means of natural language input, quickly understand the user's semantics and search for files that match the user's intent in the AI NAS to improve the search efficiency.
07

AI Agent (Intelligent Assistant）

Through the Agent running on the AI NAS, users can operate various functions in the AI NAS, such as shutting down, searching, and removing duplicates, through text/voice conversations.
08

AI DIM (Decentralized Instant Messaging)

Self-hosted internal chat system, all data is saved locally, and efficiency is improved through AI translation, summary and other auxiliary chat content.
09

AI Note

Personal exclusive notes stored locally are only saved in the terminal and NAS, and AI can be called upon at any time to improve efficiency.
010

AI Video Surveillance

Supports the connection of multiple cameras, and combines AI algorithms to achieve local storage, event recognition, timeline review and remote access of surveillance videos, enhancing the intelligent security capabilities.

Application Scenarios

Smart Home Entertainment

在个人和家庭中，AI NAS可以用于智能相册管理、图片文字识别、老照片修复等功能，提升家庭娱乐和照片管理的便捷性。
Enterprise Office Scenarios

在企业日常办公中，数据量持续增长，涵盖文档、表格、图片、视频会议记录等各类数据，AI NAS产品可发挥重要作用。首先，它能为企业提供大容量、高可靠的集中式存储，将分散在员工电脑中的数据统一管理，避免因个人设备故障导致数据丢失，同时支持多终端（电脑、手机、平板）随时随地访问，极大提升办公灵活性。
In the Field of Security Monitoring

随着安防监控系统的普及，监控摄像头数量大幅增加，产生的视频数据量呈爆炸式增长，AI NAS产品在此场景下具有独特优势。传统的存储设备仅能实现视频数据的简单存储，而AI NAS可结合AI算法对视频数据进行实时分析与处理。
Medical and Health Industry

医疗健康行业产生的数据具有高价值、高敏感性、格式多样等特点，如电子病历、医学影像（CT、MRI、超声图像）、检验报告等，AI NAS产品能为该行业提供专业的数据解决方案。在数据存储方面，AI NAS具备高稳定性和高安全性，可满足医疗数据长期存储的需求，同时符合医疗行业相关数据安全规范，保障患者隐私数据不被泄露。

The field of intelligent manufacturing

在智能制造过程中，会产生大量与生产相关的数据，包括生产设备运行数据（如温度、压力、转速）、产品质量检测数据（如尺寸、外观检测图像）、生产流程数据等，AI NAS产品可助力企业实现智能化生产与管理。首先，AI NAS能实时采集并存储生产设备运行数据，通过AI算法对这些数据进行分析，可预测设备可能出现的故障，提前发出维护预警，避免设备突然停机导致生产中断，降低企业生产成本。
The field of education and training

教育培训领域的数据包括教学视频、课件、学生作业、考试试卷、学习记录等，AI NAS产品可为教育机构和学习者提供优质的服务。对于教育机构而言，AI NAS可集中存储大量教学资源，方便教师随时调取使用，同时支持多班级、多校区共享教学资源，实现优质教育资源的高效利用。例如，学校可将优秀教师的授课视频存储在AI NAS中，其他教师可观看学习，提升教学水平；不同校区的学生也能共享相同的课件和教学视频，保障教学质量的一致性。

Product Specifications

Hardware Specifications
Product Name	AI NAS TS-SG-N500
CPU Processor	Sophon BM1688 8-Core ARM Cortex A53 @ 1.6GHz with 32KB I/D L1 Cache and 1MB L2 Cache
Coprocessor	RISC C906@1200Mhz with 32KB I Cache and 64KB D Cache
TPU Computing Power	INT4:32TOPS(Peak) INT8:16TOPS(peak) FP16/BF16:4TFLOPS(Peak) FP32:0.5TFLOPS(peak)
TPU Toolchain	Supported neural network architectures: Caffe/Pytorch/TensorFlow(Lite)/ONNX/MXNet Achievable video applications: Pedestrian Detection, Face Detection, Face recognition recognition, Face anti-spoofing, etc
Video Encoding/Decoding	Encoding specification: 10 channels 1080P@30fps format: H.265&H.264 type: hardware encoding Decoding specification: 16-channel 1080P@30fps format: H.265&H.264 type: hardware decoding
Image Decoding	Decoding specification: 16-channel 1080P@30fps format: MJPEG type: hardware decoding
Memory Chip	Capacity: 16GB Quantity: 8GB x 2 Type: LPDDR4/4x 4266MHz Bit Width: 64-bit Note: Integrated on the core board
eMMC System Disk	Capacity: 64GB quantity: 32GB x 1 type: eMMC5.1 bit width: 4 bits note: on-board core board
SSD Solid-state Drive	Quantity: 1 (512GB is selected according to factory configuration) Type: NVMe Rate: 2x Slot: M.2 M-Key x 4 Size: 2280 Application: LLM Model Storage/Accelerated Cache Array Mode: No Notes Compatible with 128 gb / 256 gb / 512 gb / 1 TB / 2 TB / 4 TB SSD solid state drives

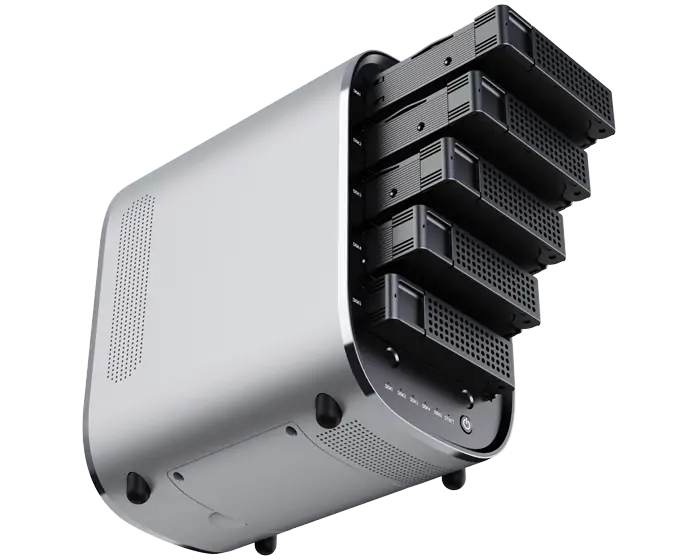

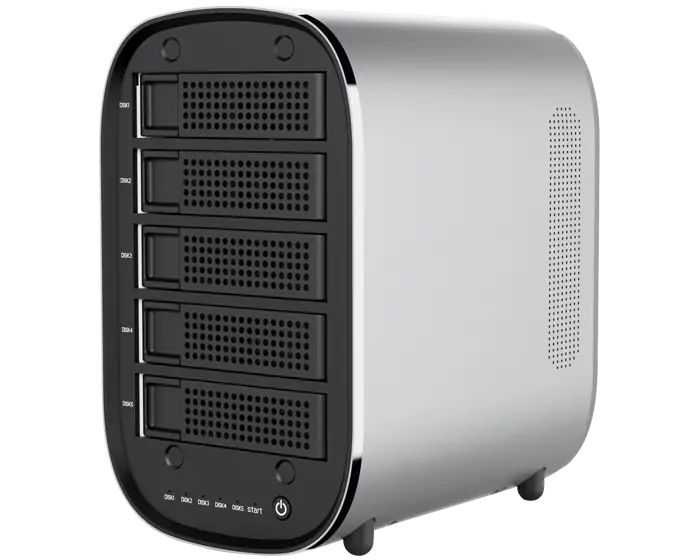

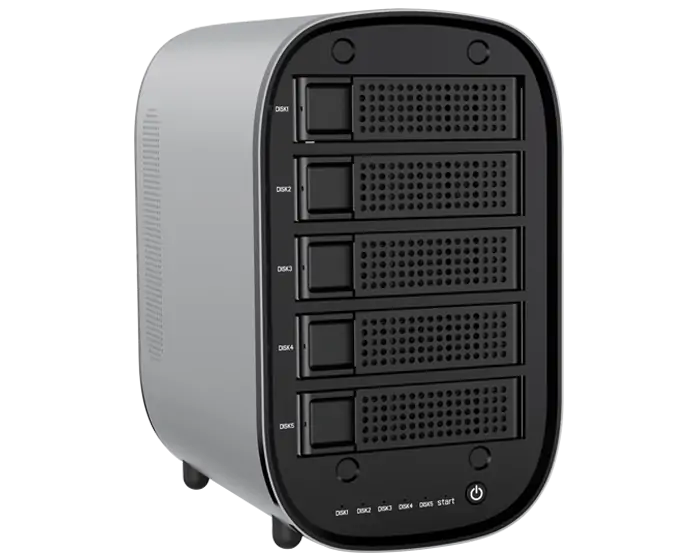

Mechanical Hard Disk Bay	Quantity: 5 Type: SATA Slot: 7+ 15-pin SATA x 5 Size: 3.5 inches /2.5 inches Array modes: normal mode, raid 0, raid 1 note: compatible with 2 TB / 4 TB / 8 TB / 10 TB / 12 TB / 18 TB / 22 TB mechanical plate
Maximum Data Storage Capacity	32TB x 5 + 4TB x 1 = 164TB

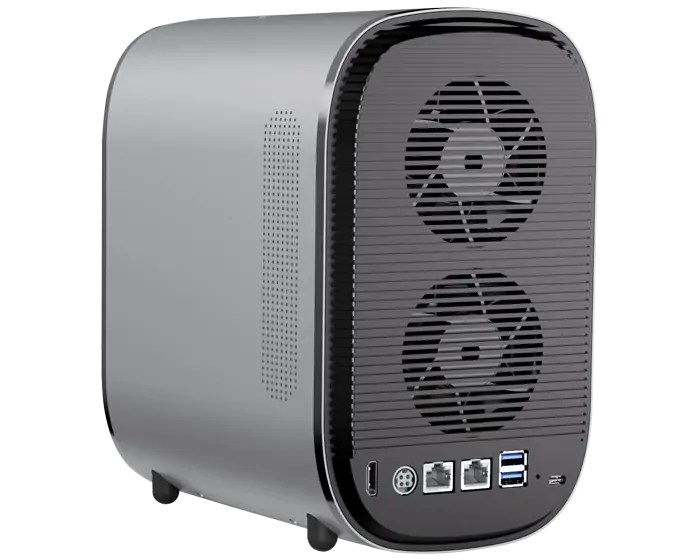

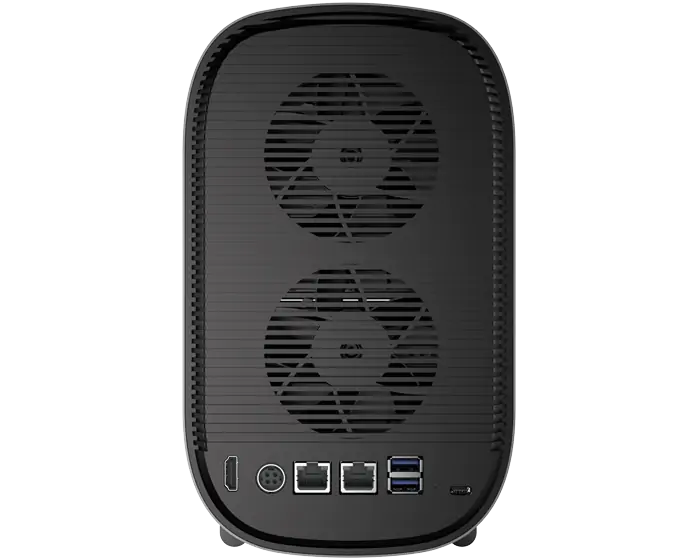

I/O Interface	Back Interface	Network port: 1000Mbps RJ45 LAN x 2 at the back HDMI: Rear HDMI2.0 x 1 (4096x2160@60fps) Wi-Fi: Rear antenna x 2 (802.11a/b/g/n/ac/ax 2T2R+Bluetooth 5.3 Combo Modul) (* reserved design) USB port: Rear USB 3.2 Gen1 x1(5GB) Host Type-C x1, rear USB 3.2 Gen1 x1(5GB) Host Type-A x 2 Power port: Rear 4-core industrial aviation socket & regular DC socket dual Layout (5-bay aviation socket) Power button: Front power on/off button x 1 RST key: Rear restore factory default key x 1
	Interface on the Board	SSD slot: NVMe x1 M.2 M-Key 2280 PCIe 4x slot: Adapter HDD backplate (configured as SATA 3.0X 2 for dual-bay models) USB port: Built-in USB 2.0 Host Type-A x 1 (* reserved design) PWM sockets: CPU fan 4-pin x 1, case fan 4-pin x 2 Panel arrangement: 20-pin x 1 (LED panel 20-pin FPC) SD card slot: For burning system firmware UART Serial Port slot: 4-pin UART x 1 (* Reserved design) Buzzer: Buzzer x 1

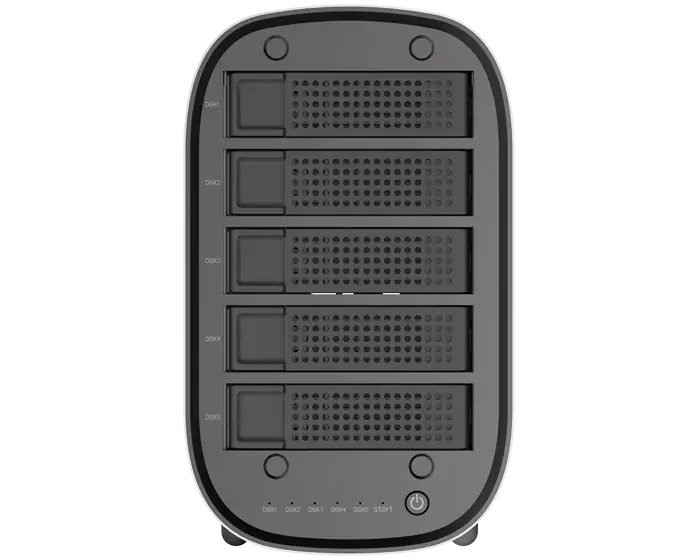

	LED Light Control Interface	Power light: Front, blue monochrome foggy LED, turns on when turned on and turns off when turned off System & Network status light: Front, blue and red dual-color foggy LED, indicating the system's operating status Disk status lights 1 to 5: Front, blue and red dual-color foggy LED, indicating the operating status of disks 1 to 5 SSD status Light 1-2: Front, blue and red dual-color foggy LED, indicating the operating status of SSD 1-2 (* reserved 6-pin socket design)
	LCD Display Interface	LCD display: It adopts a graphical interface to show various operating states of the machine (* reserved design) Page-turning key: Manually flip up/down the menu content (* reserved design)
Power Management	Power on and start the machine	Whether the power is manually plugged in or restored after a power outage in the power grid, by default, the system needs to be turned on, the operating system started, and automatically entered upon power-on Working status (online status)
	Manual power on/off	Power-on: Briefly press the power button to power on. The operating system will run the power-on process and automatically enter the NAS online state after about 30 seconds. To shut down: Press and hold the power button for more than 3 seconds. The operating system will run the shutdown process. After completion, it will enter standby mode. Forced shutdown: Press and hold the power button for 4 seconds to force a shutdown and forcibly cut off the power supply of the entire machine.
	Power Supply	Power adapter DC 12V 10A (Aviation plug)
PCB Planning	Motherboard	It is composed of a BM1688 core board and an interface mother board
	HDD Backplane	Place the SATA socket x 5
	LED Panel	Place the LED light and power button (* Place the LCD display, reserved design)
PCB Process Parameters	Size	Motherboard: 1701261.6mm
	Number of Layers	6th floor
	Green oil	Black
	Surface Coating	Gold Plating Process
	Component Materials	TBD

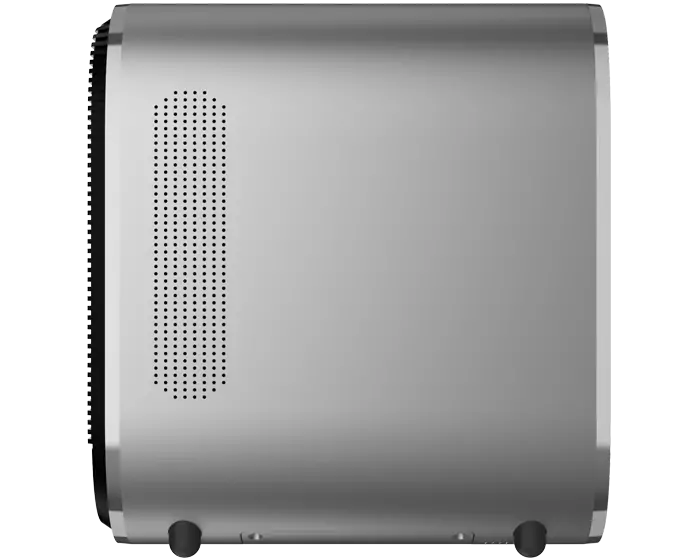

Overall Machine Dimensions	220.0x150.0x220.0mm	Product material: Aluminum alloy, ABS
