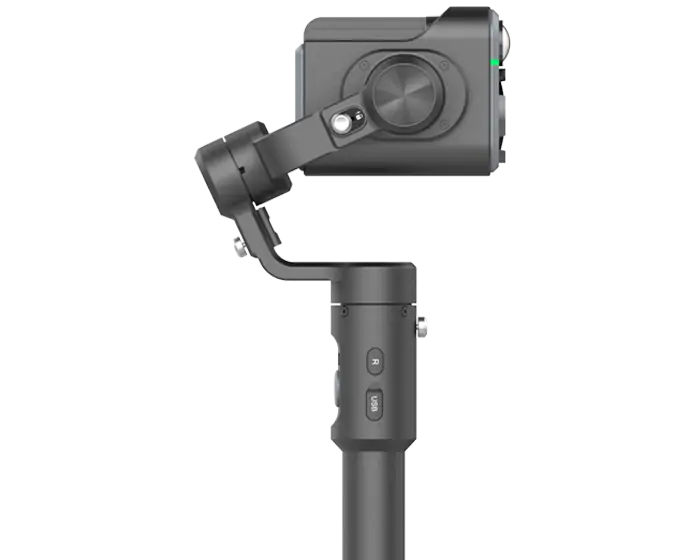

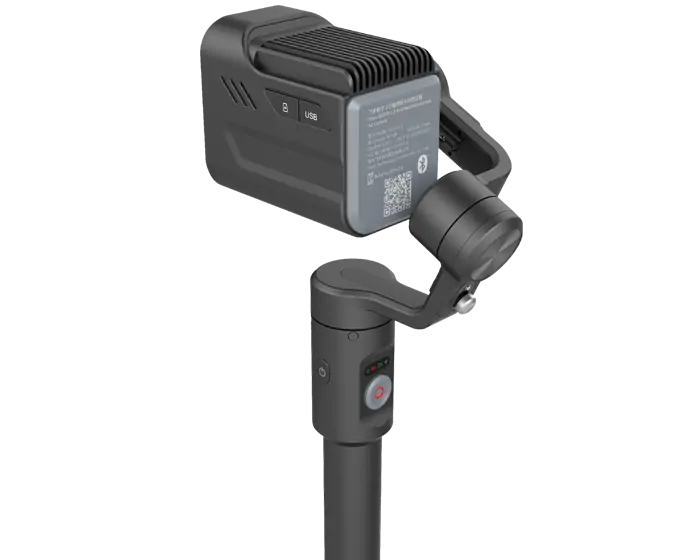

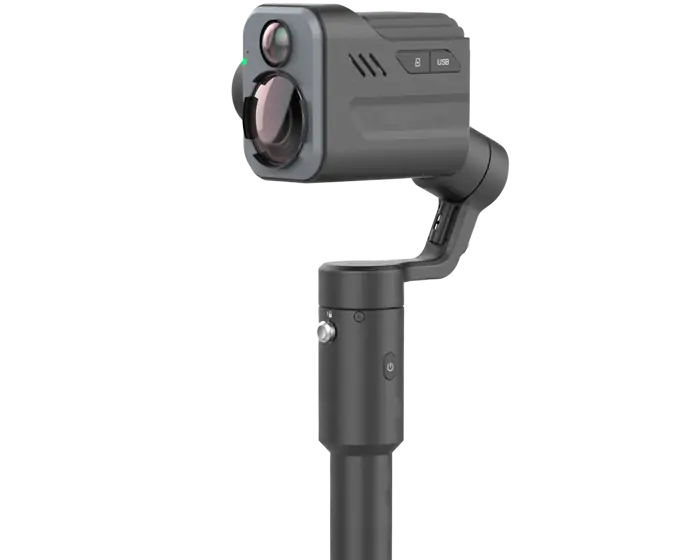

AI Golf Robot Action Camera

Leveraging its end-to-end independent R&D capabilities, Tensortec has launched an AI-powered robotic sports camera for golf. This product integrates hardware innovation, AI algorithms, and an ecosystem platform to build a comprehensive smart system—covering everything from motion capture to intelligent analysis, and from user interaction to device operation and maintenance—injecting technological momentum into the sport of golf.

End-to-End In-House Hardware Design: Precisely Capturing Every Swing

The core hardware is built to industrial-grade standards, achieving in-depth optimization from appearance to performance: Integrated Robotic Industrial Design: Incorporating the unique demands of golf scenarios, it features a lightweight yet highly stable body. Designed to adapt to complex course environments, it seamlessly blends a technological aesthetic with practical utility.

Core Components with Independent R&D

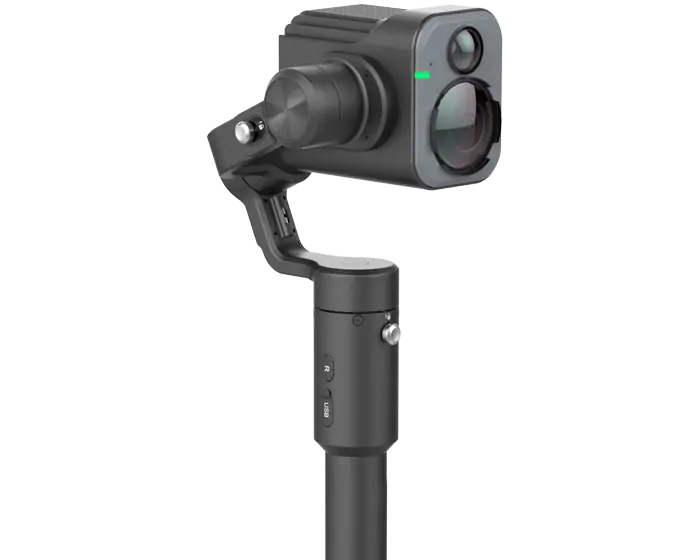

Equipped with a high-precision gimbal, professional-grade imaging core, and lenses, it supports 360° seamless tracking to accurately capture key moments such as swing trajectories and ball flight paths. The camera features a proprietary mainboard powered by the Qualcomm QCS6490 chip, delivering robust computing performance to enable local real‑time processing of high‑frame‑rate video data. A custom long‑life battery is also integrated, capable of supporting full 18‑hole recording with a battery life improvement of over 30%. Hardware Synergy Advantage： All components are deeply adapted and optimized, providing triple assurance of low‑latency response, high‑definition imaging, and stable operation, thereby supplying high‑quality raw data for intelligent analysis.

Product Highlights

01

Real-time Swing Analysis

Through the posture recognition algorithm, 12 key parameters such as swing rhythm, Angle and force are decomposed to generate a visual motion report.
02

Intelligent Follow-up Shooting Strategy

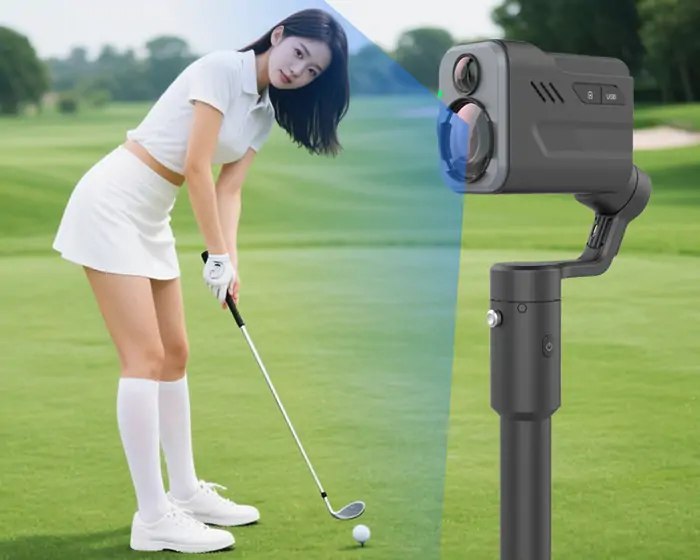

Based on the player's position and the prediction of the ball path, the shooting Angle is automatically adjusted to ensure that no crucial moments are missed.
03

Personalized Training Suggestions

Based on the comparison of historical data and professional player models, targeted improvement plans are pushed to users.
04

Golf User Operation APP

High-definition playback of swing video, keyframe marking, and support for slow-motion analysis; Data-driven training logs, recording the swing progress curve and weak points; The community interaction function supports remote guidance from coaches and experience sharing among players.
05

Robot Operation and Maintenance Platform

Real-time monitoring of equipment status, including battery power, network, hardware health, etc. Remote fault diagnosis and OTA upgrade reduce operation and maintenance costs and enhance equipment availability. Operational data statistics provide decision-making basis for stadium management, such as equipment scheduling and user preferences.
06

For Players

Provide "professional coach-level" real-time feedback to shorten the training cycle and enhance exercise efficiency.
07

As a Coach

Through data analysis, accurately identify students' problems and optimize teaching plans.
08

As the operator of the venue

Enhance user stickiness with smart devices and expand value-added service scenarios (such as customized training packages, live sports events, etc.).

Application Scenarios

Business Shooting
Team Events
Casual Follow-up Shooting
Outdoor Recording

Highlight Capture

Product Specifications

Product Name	AI Golf Robot Action Camera
Category	Function		Support/Not Support	Description
Software Information	Operating environment	Operating System	Support	Qualcomm Linux System
Hardware specifications (Camera module）	Main Control Chip	Core Version Model	Support	Qualcomm 6490 SOM
		CPU	Support	Qualcomm® Snapdragon™ QCS6490Qualcomm® KryoTM CPU 670Qualcomm® Adreno™ GPU 643, Adreno 633 VPU, Adreno DPU 1075Qualcomm® Hexagon™ DSP with dual HVXQualcomm SpectraTM ISP 570L image processing
		Computing Power	Support	12.5TOPS
		Memory	Support	LPDDR4x 4.266 Gbps 128bit 68.256 GB/s；The default capacity is 4GB, and the maximum supported capacity is 32GB
		EMMC	Support	64GB UFS2.1
		COB	Support	The chip COB method for PCBA and the requirement for chip dispensing
	Camera	18x optical zoom	Support	Sony 678 sensor，18x optical zoom, stepless zoom, MIPI
		Wide-angle lens	Support	Sony 678 sensor，FOV 105 degrees, H:120, V: 77, aperture F2.0, MIPI, fixed focal length 3.2
		Image Debugging	Support	ISP debugging (2A), SHDR (priority 18x optical zoom), optical zoom algorithm and focusing debugging; 30fps, with different resolutions for the two channels, frame synchronization is required. At least 1080P simultaneous recording of two channels, with zoom preferred for SHDR. Algorithm analysis, using ZooM SHDR YUV data
	Wireless Communication	5G/4G Module	Not Supported	This version is not needed
		Wi-Fi & BT	Support	Independent Wi-Fi/BT module, supporting Wi-Fi 6, dual-band usage
	Positioning	GPS	Support	Independent GPS Module
	MIC	Remote Sound Pickup	Support	Dual-mic noise reduction (symmetrically arranged front and back) enables remote sound pickup within 5 meters and recognizes the sound of golf shots
	Horn	External Playback	Support	A high-power speaker of 1318
	USB Interface	Type C	Support	Type C can be upgraded and debugged
	Storage Interface	Micro SD	Support	1个
	Heat Dissipation	Passive Heat Dissipation	Support	It adopts aluminum profiles (with heat dissipation teeth) + silicone grease + graphene heat dissipation film
	Compass Module		Support
	Gsensor		Support
	Camera Indicator light	Indicator light	Support	Red, green, blue, yellow, flashing, supports customization in multiple states; Supports breathing, fast flashing and slow flashing. It is controlled by a camera module and has nothing to do with the gimbal
	Power Supply		Support	Pan-tilt power supply: DC 12V2A, direct battery voltage output, with a certain range; The camera module should be well controlled by the power DC. The power supply comes from the pan-tilt. The camera module is powered on and started up, so there is no need to consider charging. There is a key on the pan-tilt. After the pan-tilt is shut down, it will notify the 6490 camera module to shut down through the serial port.
	Gimbal and camera interface		Support	Supports Uart serial port, DC power supply, ground, a total of 6 pins. The pan-tilt needs to provide communication and control protocols, including power supply, power-on, power-off, video recording key, bilateral wake-up, pan-tilt movement control, etc
	Waterproof	The camera module is waterproof	Support	For IP43, it is important to note that the wiring between the camera module and the gimbal is seamless.
Holder	Three-axis gimbal	Three axes	Support	Uart port, power supply 12V; Mechanical yuntai 3 axis rotation Angle: heading/pitch/roll = heading/back/roll = + - 90 ° / 45 ° / + - 30 °
	PTZ host power supply	High-density battery	Support	10W power, 5-hour battery life, 12V voltage, uses 21700 battery cells, 3 batteries, 5000mah each
		Type-C charging	Support	Supports charging and can debug the pan-tilt control board
	Indicator light	Indicator light	Support	Pan-tilt status indicator/key status/charging indicator/battery level indicator (green, red, blue, fast flash, slow flash, breathing)
	Key type	Video recording	Support	The color can be set: Add a single-color indicator light (green) beside the key.
		Reset	Support	Supports short pressing twice to reset the gimbal and restore the zero position. The camera mechanism can perform a simple self-check. Short pressing five times can reset the gimbal and initialize the camera (camera application initialization and mechanism lens initialization).
		Power Button	Support	Long press to power on and off. Short press to reset the pan-tilt is not supported. (With a power on/off indicator light)
	Waterproof		Support	IP43, the pan-tilt control board needs to be coated with waterproof paint. The rotating pan-tilt uses anti-rust bearings;
	The gimbal is detachable		Support	The rotating pan-tilt, camera module and pan-tilt main unit can be disassembled and replaced.
Extension rod	Material		Support	Aluminum rod, rust-free
	Size		Support	Cone: 12CM, extension rod: aluminum rod
Reliability	Environmental characteristics	Working temperature	Support	-20℃~+55℃
		Storage temperature	Support	- 30℃~+80℃
		Humidity	Support	95% RH@60℃
		Protection grade	Support	Except for the pan-tilt which is not waterproof, all other components need to meet IP43 standards. The interface connection points of each module need to be given special consideration

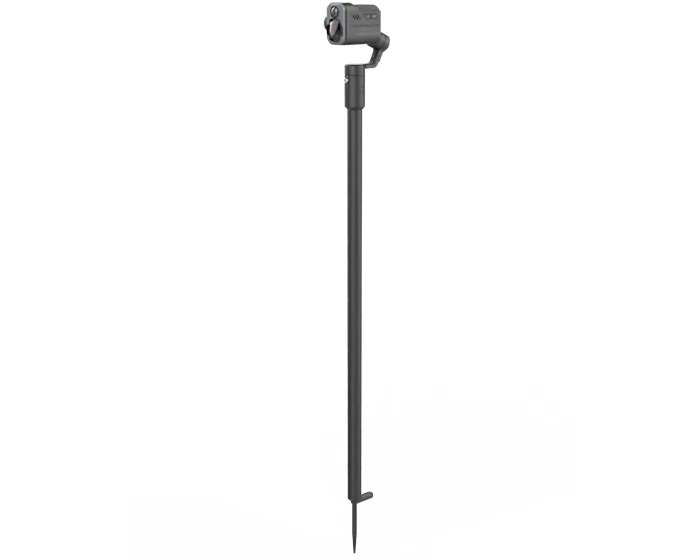

	Structural dimensions	Size		The total height of the entire Gcam (including the camera module, pan-tilt handle, extension rod, and cone) is 120cm, the cone is 12cm, the camera module is approximately 8cm, and the estimated height of the pan-tilt handle and extension rod is about 100cm. The material, color and craftsmanship of the extension rod are the same as those of the rod body. The camera, gimbal handle, extension rod and cone are all detachable.
	Certification	Certification requirements	Support	CE、FCC、3C
		Electromagnetic compatibility	Support
