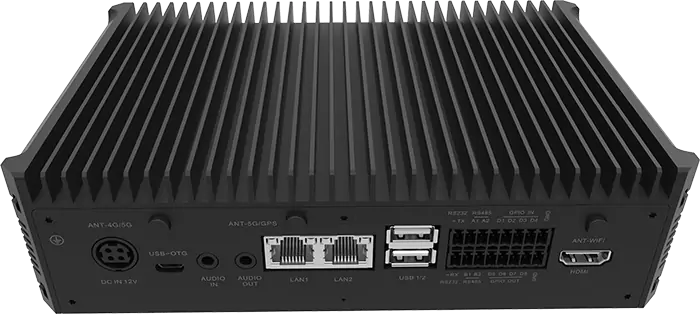

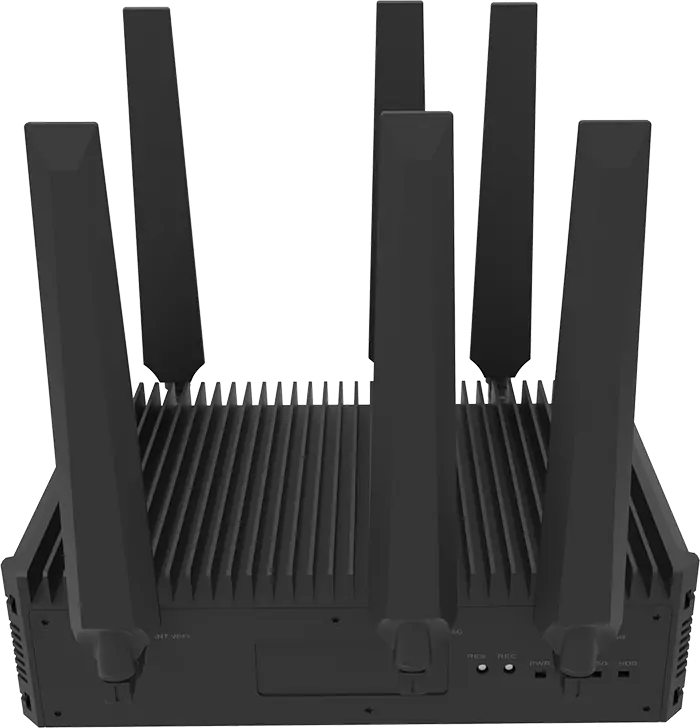

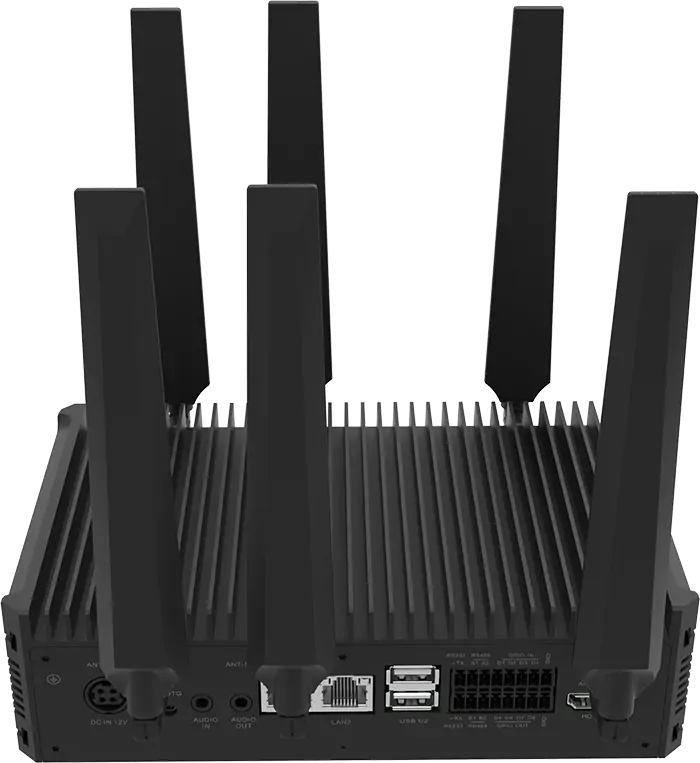

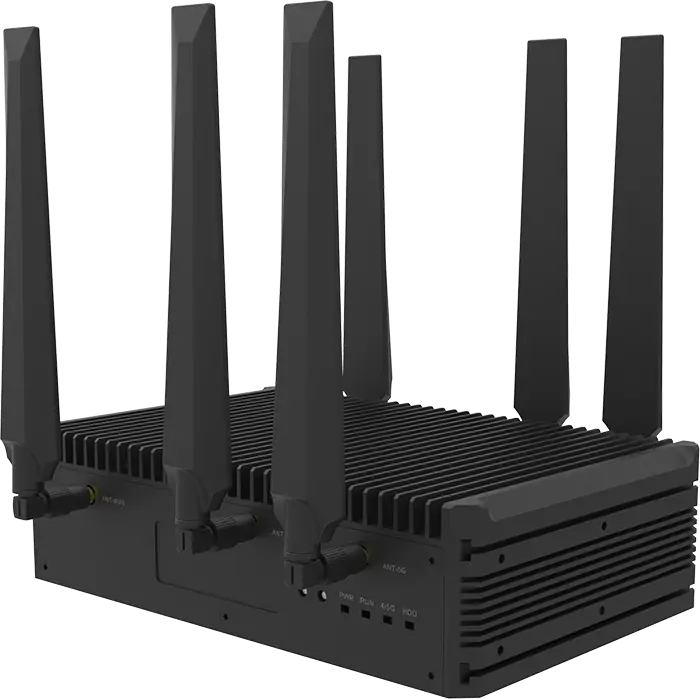

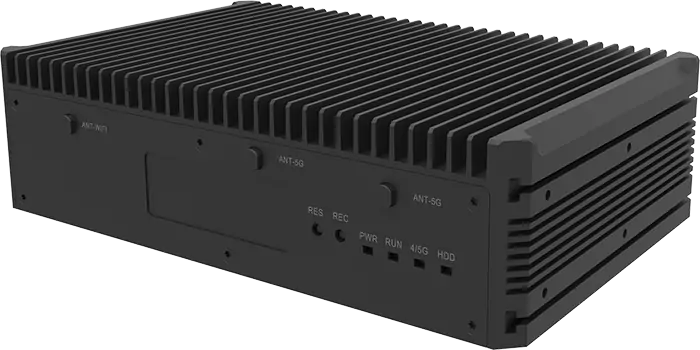

TS-NV-P100 Series

As 5G+AI becomes the engine of digital economic growth, AI empowerment is penetrating ever more broadly. AI edge computing, with its advantages of low latency, stability, reliability, and flexible scalability—combined with cloud-edge integration application systems—has emerged as a new trend in data‑driven empowerment.

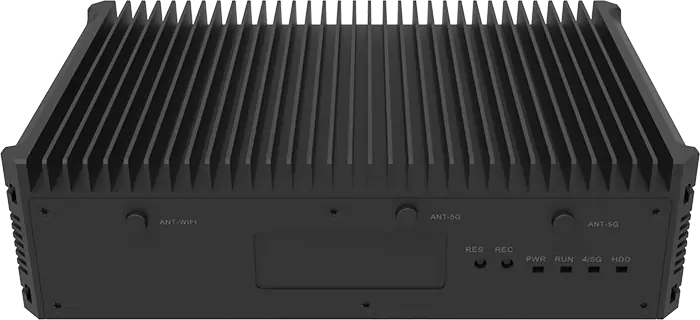

The Tensortec TS‑NV‑P100 series AI edge computing box is an AI edge computing product developed based on the NVIDIA Jetson Xavier NX/TX2 NX/NANO/ORIN NX/ORIN NANO embedded ARM architecture and ultra‑powerful SoC chips. It provides a mature, robust, and reliable AI hardware and software development environment alongside comprehensive support services, making algorithm migration straightforward and product engineering development easier, thereby significantly shortening the deployment cycle of AI products. The product features an industrial‑grade design, ensuring stability and reliability.

Product Highlights
  • 01
    The algorithm transplantation cycle is short
    Nvidia Jeston Jetpack Standard Development Kit: Ubuntu Linux OS, CUDA, cuDNN, OpenCV, TensorRT etc, support Caffe/TensorFlow/Pytorch/Mxnet/Paddle Lite degree of mainstream learning framework, etc.
  • 02
    Ultra-high-performance AI computing and codec capabilities
    The GPU has strong comprehensive computing power and is equipped with the latest NVIDIA AI acceleration engine, TensorRT.
  • 03
    Rich interfaces and flexible deployment capabilities, AIoT edge integration
    USB, HDMI, RS-485, RS232, CAN, RJ45, self-righteous I/O, etc.
  • 04
    Dual gigabit network cards
    Supports dual network IP Settings, isolation between internal and external networks, and other applications, suitable for various networking environments. Supports GPS, Wi-Fi and 4G/5G LTE line transmission.
  • 05
    Support system disk expansion
    Supports M.2 NVMe SSD system disk expansion.
  • 06
    Industrial-grade products, stable and reliable
    The copper sheet and condensing silicone grease have excellent heat dissipation performance, are resistant to surges and lightning strikes, and support a wide temperature range of working environments.
Application Scenarios
  • Smart Security
    Communities/parks, campuses, bank urban complexes, etc
  • Intelligent Transportation
    Road maintenance, holographic intersection vehicle-road coordination, etc
  • Smart Finance
    Smart outlets, vaults, etc
  • Work Safety
    Smart construction sites, factories, warehouses, gas stations, fire emergency response, etc
  • Industrial Machine
    Industrial vision inspection, etc
  • Intelligent Inspection
    Power inspection, unmanned operation, etc
  • New Retail
    Business halls, supermarkets, chain stores, etc
Product Specifications
Product Specification AI Edge Computing Power Box
TS-NV-P100(16GB/8GB)
AI Edge Computing Power Box
TS-NV-P100M
AAI Edge Computing Power Box
TS-NV-P100L
AI Edge Computing Power Box
TS-NV-P100X(8GB/4GB)
AI Edge Computing Power Box
TS-NV-P101S(16GB/8GB)
Operating System SoC NVIDIA Xavier NX NVIDIA TX2 NX NVIDIA NANO NVIDIA ORIN NANO NVIDIA ORIN NX
CPU

6 Core NVIDIA Carmel

ARM®v8.2 64-bit CPU

dual-Core Denver2 64bit CPU and quad-Core arm Cortex A57 4 Core ARM A57 6 Core Arm®Cortex®-A78AE v8.2 64CPU;1.5GHZ

16GB:8 Cores ARM Cortex A78AE V8.2 64

8GB:6 Cores ARM Cortex A78AE V8.2 64

GPU

384-core NVIDIA Volta™

GPU with 48Tensor Cores

NVIDIA Pascal 256 CUDA CUDA Cores 128 Core Maxwell

8GB:1024*CUDA cores and 32

Tensor Core Ampere Architecture

4GB:512*CUDA cores and 16

Tensor Core Ampere Architecture

1024* CUDA cores and 32
Tensor Core Ampere Architecture
Memory 8GB or 16GB LPDDR4x 59.7GB/S 4GB 128bit LPDDR4x 4GB 64-bit LPDDR4 8GB 128-bit LPDDR5 68GB/s
4GB 64-bit LPDDR5 34GB/S
16/8GB 128位LPDDR5 102.4GB/s
eMMC 16GB eMMC 5.1 16GB eMMC 5.1 16GB eMMC 5.1 Supports external NVME Supports external NVME
OS Ubuntu 18.04;CUDA 10.2;Jetpack 4.5.1 Jetpack4.6.1 Ubuntu 20.04,jetpack5.1
Computing Power Computing Power INT8:21Tops;FP16 FP16:1.33TFLOPS FP16:0.5TFLOPS 8GB:40TOPS(INT8)
4GB:20TOPS(INT8)
16GB:100TOPS(INT8)
8GB:70TOPS(INT8)
Video Coding 20*1080P30(H.264)
4*4K P30
14*1080P30 (H.264)
3*4K P30
4*1080P30(H.264)
1*4K P30
4*1080P30 4*1080P30
Decoding 22*1080P30(H.264)
12*4K P30
14*1080P30(H.264)
4*4K P30
4*1080P30(H.264)
2*4K P30
1*4K60(H.265)/2*4K30(H265)
11*1080P30(H265)
1*4K60(H.265)/2*4K30(H265)
11*1080P30(H265)
HDMI 1 x HDMI 2.0
LAN RJ45 2*100M/1000M
USB USB 2*USB 3.0;1*USB 2.0 debug
I/O (Phoenix Terminal Plug) RS485 2* D+ and D- connector with DI/DO
DI/DO 6-bit(3IN-3OUT)GPIO,2*GND,connector with RS485
RS232 1*,RXD and TXD,connector with DI/DO
CAN 1*CAN
Expand Expand M.2 nvme SSD(Upper 2TB)1* NANO SIM,1* Micro SD;1* 4G/5G,1*GPS,1*Wi-Fi
Audio Audio In/Out 3.5mm Earphone holder
Key Key Recovery*1;Reset*1
Power Conn aviation plug,4Pin DC 9 ~ 24V (Typical:DC12V 5A)
Indicator Power/run Power indicator (blue power on,NO light power off);System operation indication
4G/HDD 4G signal indication (blue,resident network on,search network flashing,offline off)
Size P100:195.6(L)*125.0(W)*53.5(H)mm;2kg;P101:242.56(L)*125.0(W)*72.5(H)mm(不线)2.5kg
Environment Operational Temperature:-20℃-65℃;Storage Temperature:-40℃-80℃
