MV04 Vehicle Intelligent Terminal

Tensortec MV04 is a vehicle-mounted intelligent terminal that integrates algorithms for DMS, BSD, ADAS, and more. It supports algorithm customization, four channels of high-definition camera input, one channel of high-definition output, and storage via SD cards and SSDs. Video and alarm parameter data can be uploaded to the cloud platform via 4G. The device enables remote fleet management, features an IP54 protection rating, and supports wide voltage input from 9V to 36V.


It supports driver face comparison and authentication, as well as OTA and remote upgrade package deployment via USB drives. An APP is available for live preview, calibration, and device management. The terminal is compatible with radar, OBD, voice intercom, and vehicle data inputs such as tire pressure, fuel consumption, and temperature. Algorithm configuration is supported, along with dual-screen and quad-screen display modes.


Application scope: It can be used independently or as a vehicle accessory for monitoring driving status in taxis, buses, school buses, forklifts, and other vehicles.


Product Highlights
  • 01
    Fatigue Detection
    The driver yawns and keeps his eyes closed for more than 2 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 02
    Distraction Detection
    The driver keeps looking up, looking down, turning left and turning right for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 03
    Driver Anomaly
    The driver is out of position and the face cannot be detected for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 04
    Make a Phone Call for Testing
    The driver holds the phone to his ear for more than 2 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 05
    Smoking Detection
    The driver holds the cigarette in his mouth for more than 2 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 06
    Alarm for Blocking the Camera
    The driver covers the camera screen with his hand or other objects for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
  • 07
    Infrared Blocking
    The driver wore infrared-blocking sunglasses, which affected the camera's recognition of the driver's face for more than 3 seconds. Report once every 5 seconds; (Adjustable interval time)
  • 08
    Seat Belt Inspection
    The driver has not worn the seat belt for more than 3 seconds.
    Report once every 5 seconds; (Adjustable interval time)
Application Scenarios
  • Taxi
  • Bus
  • School Bus
  • Forklift
Product Specifications
Project Parameter Specification
Operating System System Linux
Plan Main Chip Quad-core chip quad-core Arm cortex A7
Memory 1GB
Startup Time Less than 10 seconds
EMMC 8GB
NPU 2.0TOPS
Sound Horn Supports 1 channel and 2W
Microphone Supports 1 channel of G.276/PCM/AMR
Video Encoding H.264
Dual bitstream The main bitstream video recording and the sub-bitstream alarm video are circulating online
Display Screen Display Supports 4-channel screen / 2-channel screen / 1-channel screen
Video Audio and video compression format Audio AAC, video H.264
Image resolution 720 (1280*720) or 1080P (1920*1080)
Real-time video recording Route 4
Electrical Performance Working Voltage DC 9-36V, Supporting ACC
Working Current ≤3000mA@12V
Power Output One DC 12V/1A
Working Environment Working Temperature -20℃~+70℃
Physical Properties Storage Temperature -40℃~+85℃
Material Metal, Plastic
Size 139.7*160.3*61.9mm
Protection Grade Waterproof and Dustproof IP54

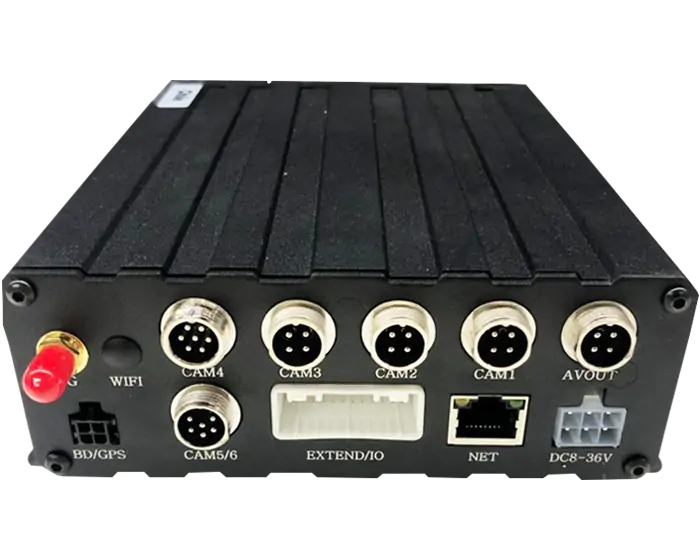

Interface Interface Power positive, power ground, ACC
6-channel IO input: 12-24V input
2-channel IO output: Supports 12V output
Two 12V output channels
1 RS232, 1 RS485, 1 CAN, 4 AHD1080P/720P inputs, 1 AHD1080P output, 1 USB2.0
Communication 4G Supports full network compatibility/global compatibility
LTE-FDD BI/B3/B5/B7/B8;LTE-TDDB34/B38/B39/B40/B41:
WCDMA BI/B8:
TD-SCDMAB34/B39:
EVDO/CDMA BCO:GSM
900/1800MHz
Bluetooth Support
Ethernet Supports 1 channel of 100M Ethernet
Wi-Fi Supports 802.1b/g/n, with a maximum rate of 433Mbps
Positioning GPS GPS/ Beidou /GLONASS, accuracy < 10m
Storage SD Card The format supports FAT32, and it supports 2 SD cards, with a maximum of 512GB per card
SSD Support
File File storage Real-time video and alarm file storage
File Upload Alarm videos, pictures and categories are uploaded in real time
Others RTC Support
Gsensor 6 axes
Indicator light Four single-color lamps
Does it support AVM Yes
